CTM Hi-Capa HPA M4 Magazine Angled Adapter

CTM Hi-Capa HPA M4 Magazine Angled Adapter

£47.95
£47.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Colour: Black

DETAILS

SKU: 9699197406
View full details

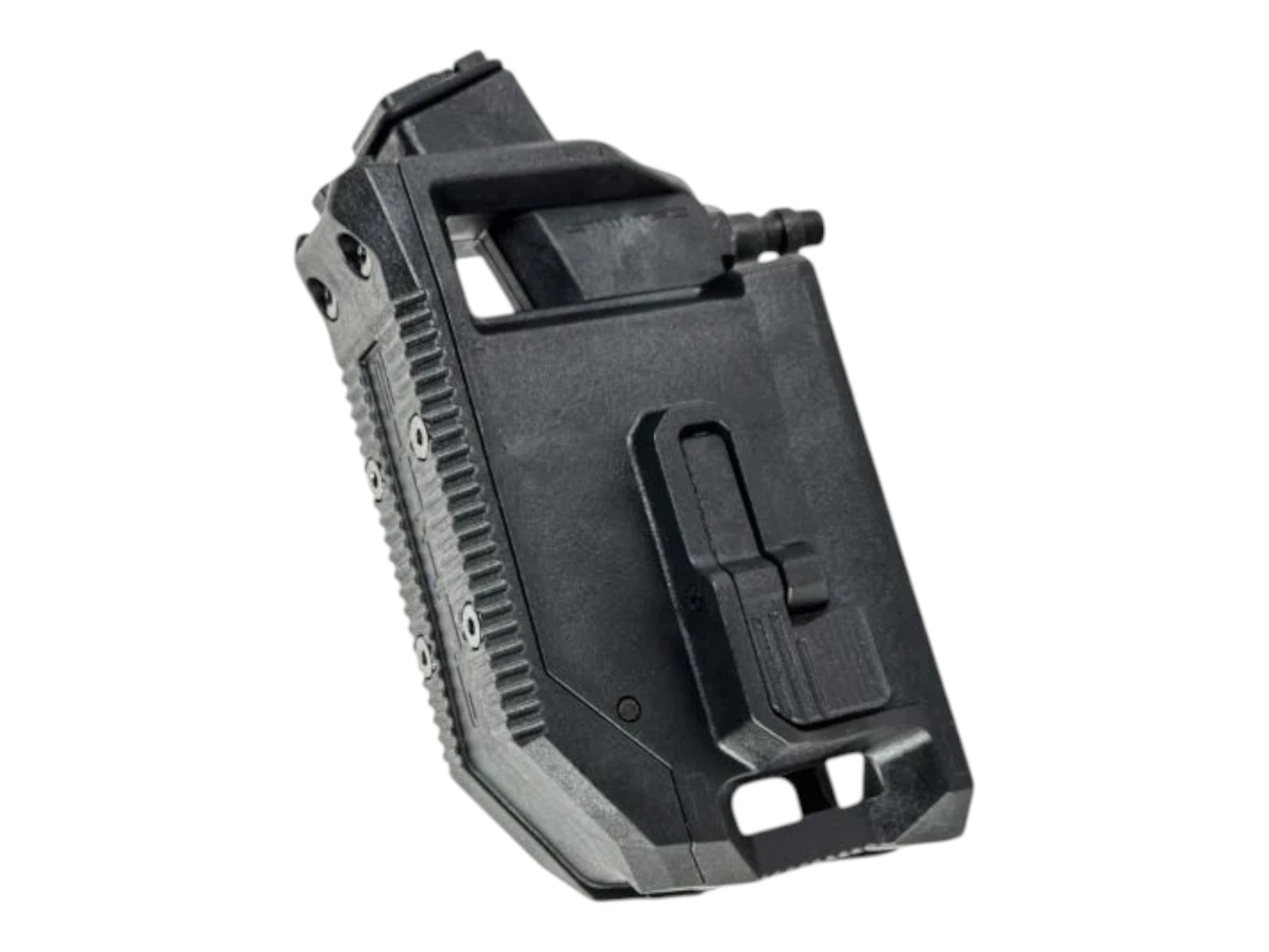

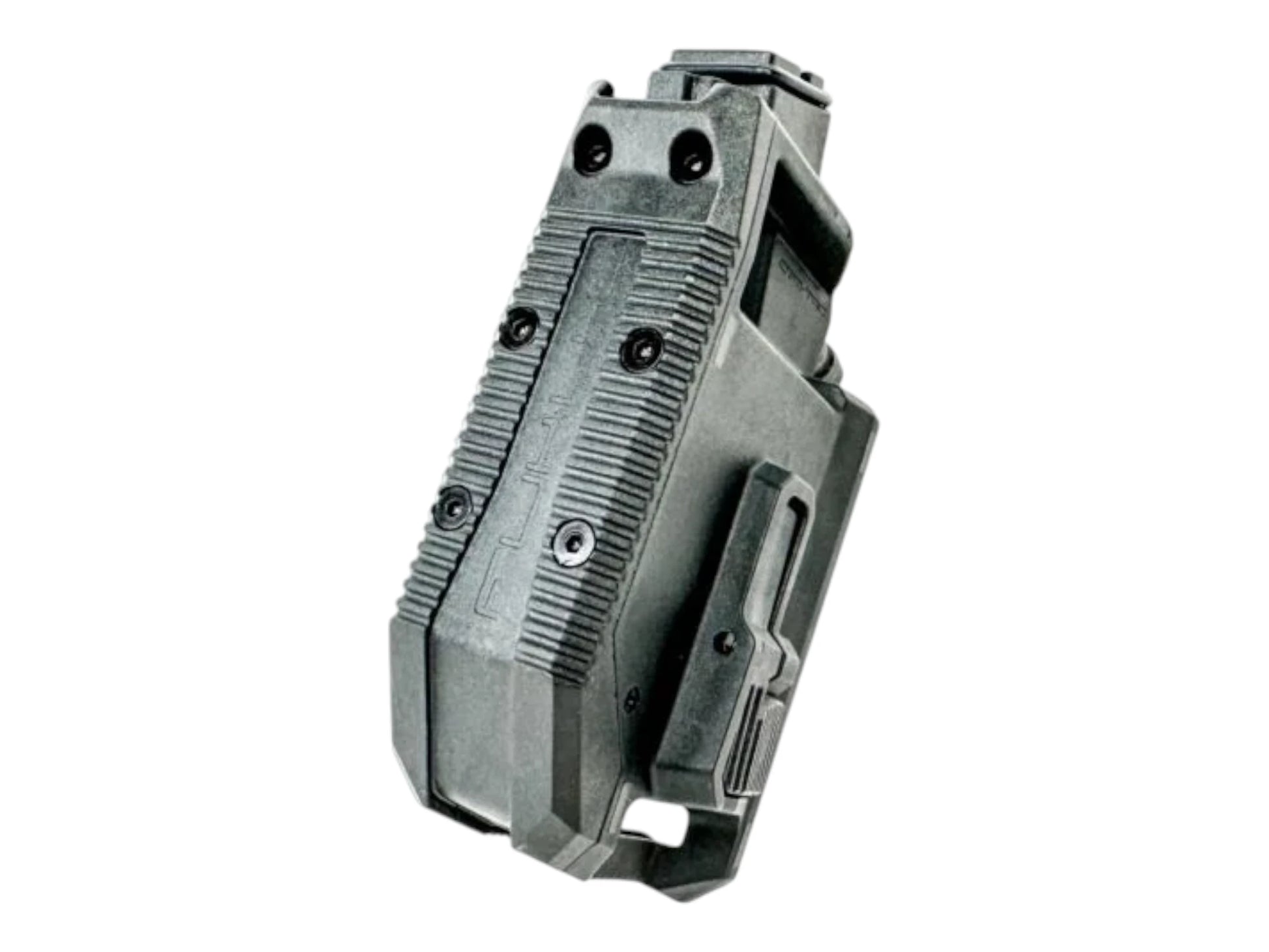

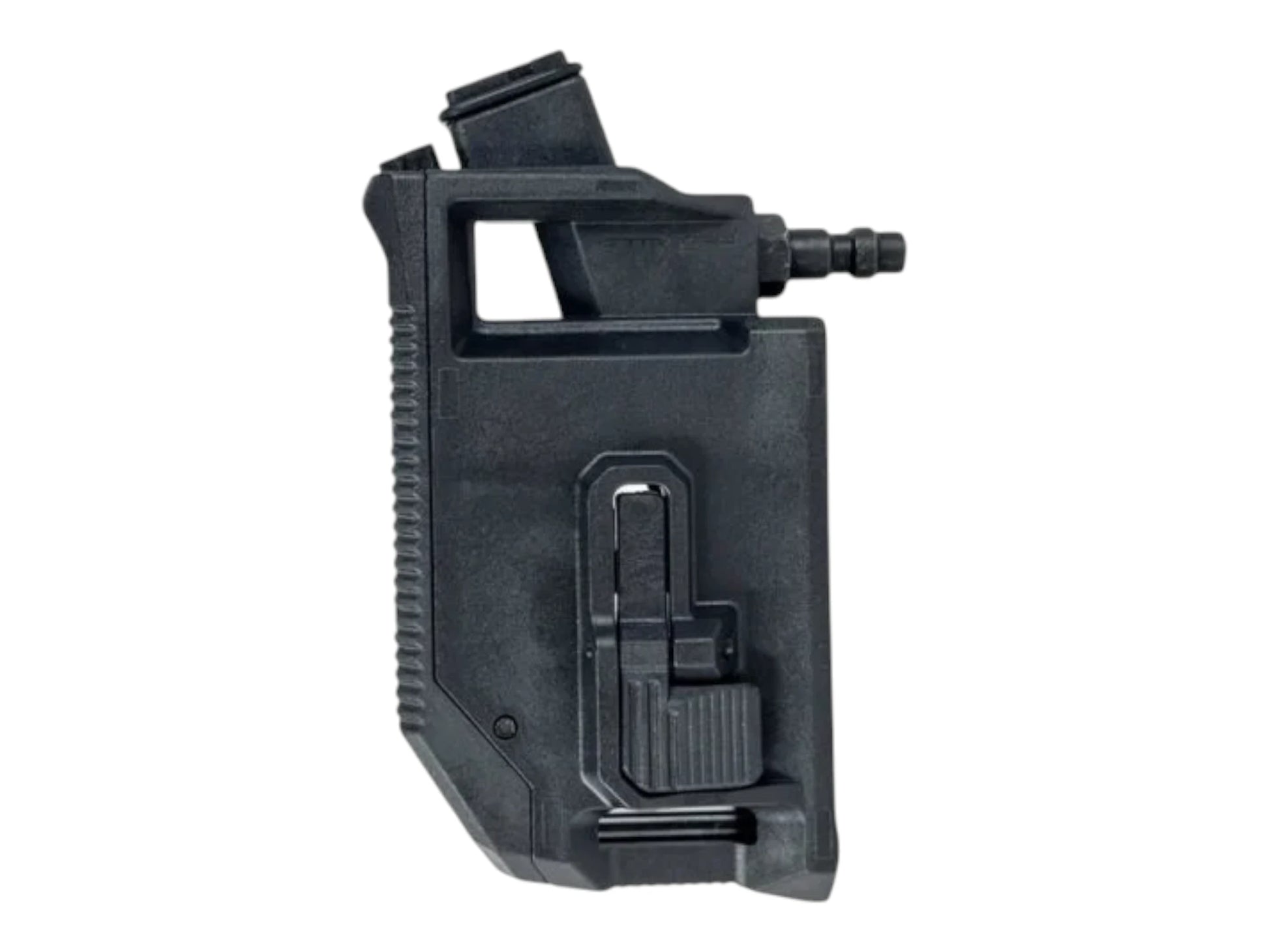

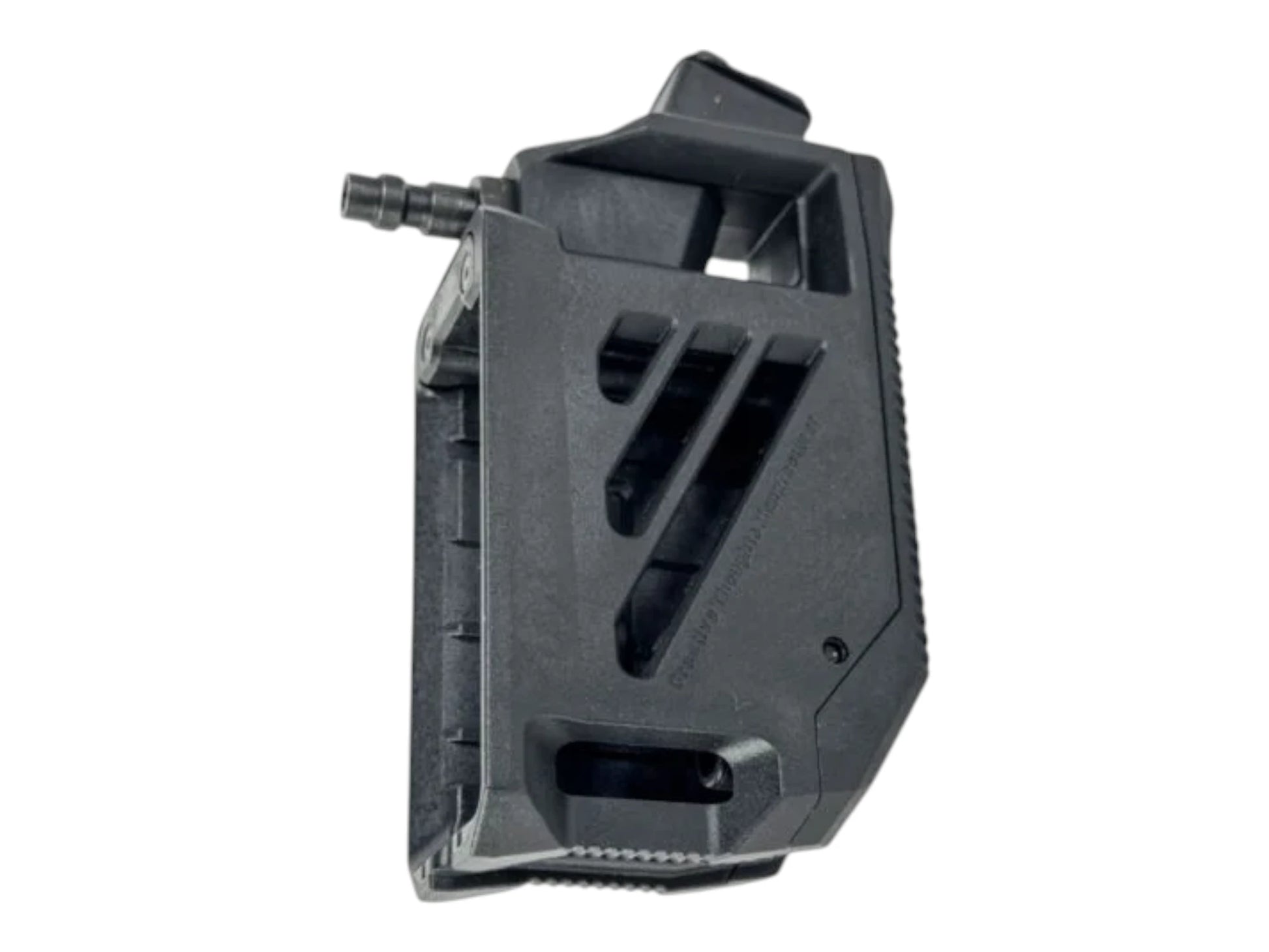

CTM Hi-Capa HPA M4 Magazine Angled Adapter — the angled-feed version, cut for awkward shooting positions. A glass-reinforced nylon adapter that drops your AR/M4 magazine in at a steep rake for prone and barricade work.

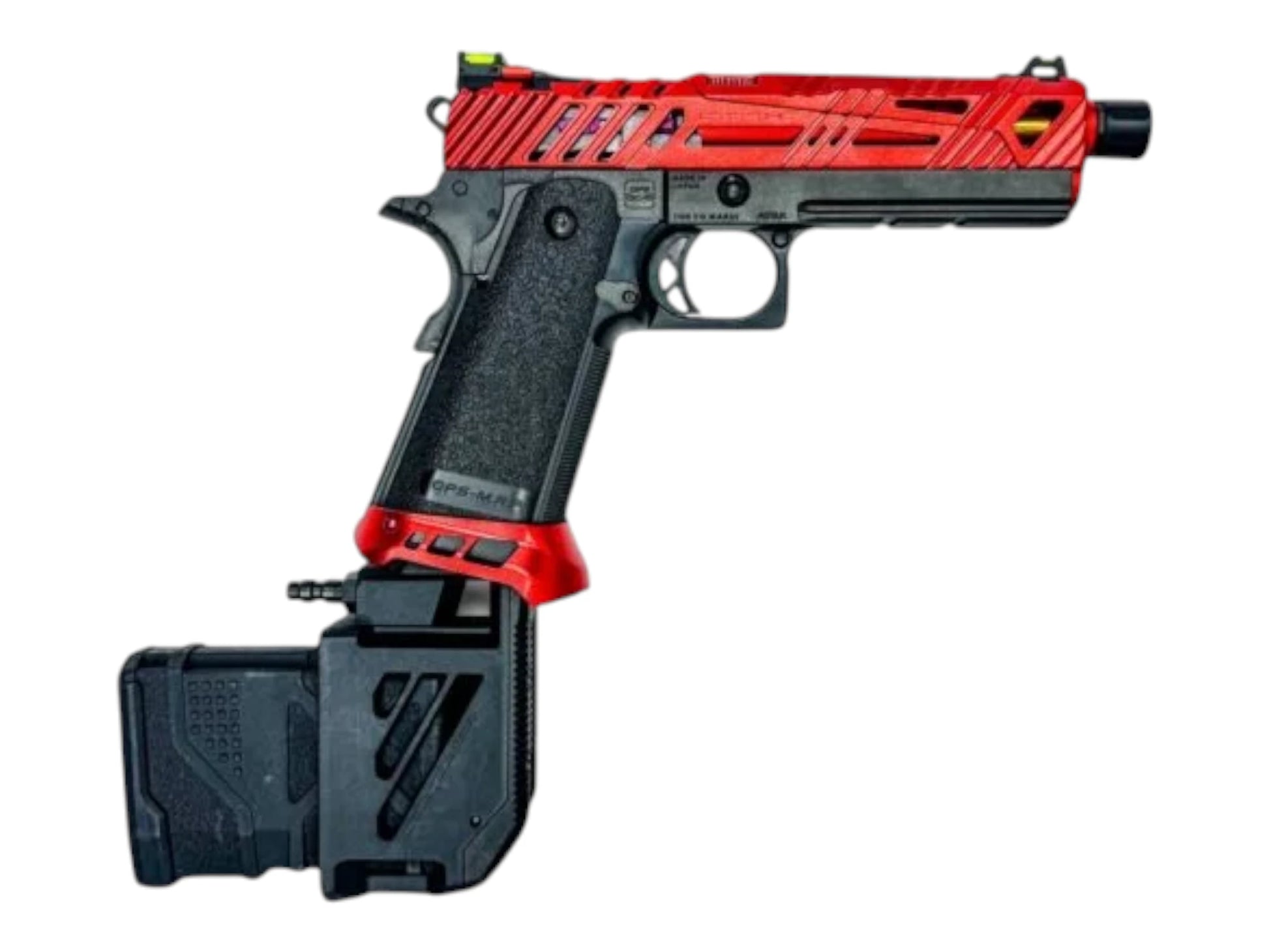

This is the angled-feed adapter for Hi-Capa pistols. Where a straight adapter hangs the AR/M4 magazine vertically beneath the gun, this one rakes it sharply backwards, drawing the magazine clear of the ground and of cover. Drop into the prone or work tight around a barricade and the magazine stops fouling on whatever is in front of you; that clearance is the whole reason the angle exists.

It is also the lowest-commitment way onto air for a Hi-Capa. Rather than a full frame rebuild, it is an adapter that swaps the gas magazine for an M4-fed air setup, which makes it the usual starting point for players who want to try HPA before committing to a M4XIMUS conversion.

The shell is glass-fibre nylon with a machined 6061 aluminium magazine catch, and on the pistol side it suits WE, Armorer Works, Tokyo Marui, KJW and SSP Hi-Capa frames. It runs PTS Syndicate SpeedQB EPM magazines along with other AEG M4 types, and a BB-locking design keeps loose rounds from spraying out when you strip the magazine.

Specifications

Specification Detail
Body Glass-reinforced nylon, injection moulded
Magazine release CNC 6061 aluminium
Pistol fit WE, Armorer Works, Tokyo Marui, KJW, SSP Hi-Capa
Magazine fit PTS Syndicate SpeedQB EPM and other AEG M4 magazines
Operating pressure 0–140 psi via low-pressure regulator; around 120 psi typical
In the box Angled adapter with rubber ring, 2.5 x 105 mm hex head with nylon gasket, universal feed tube

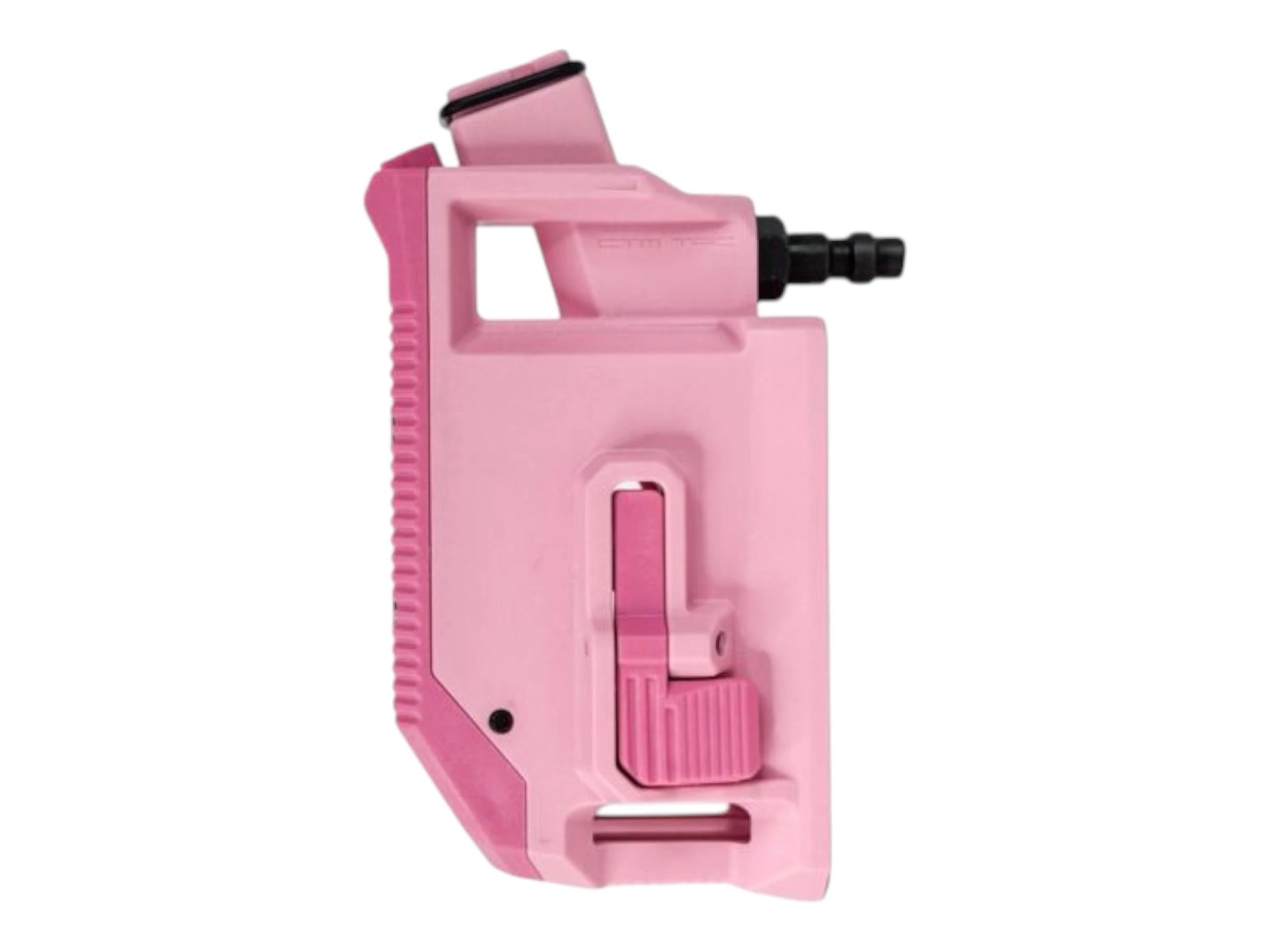

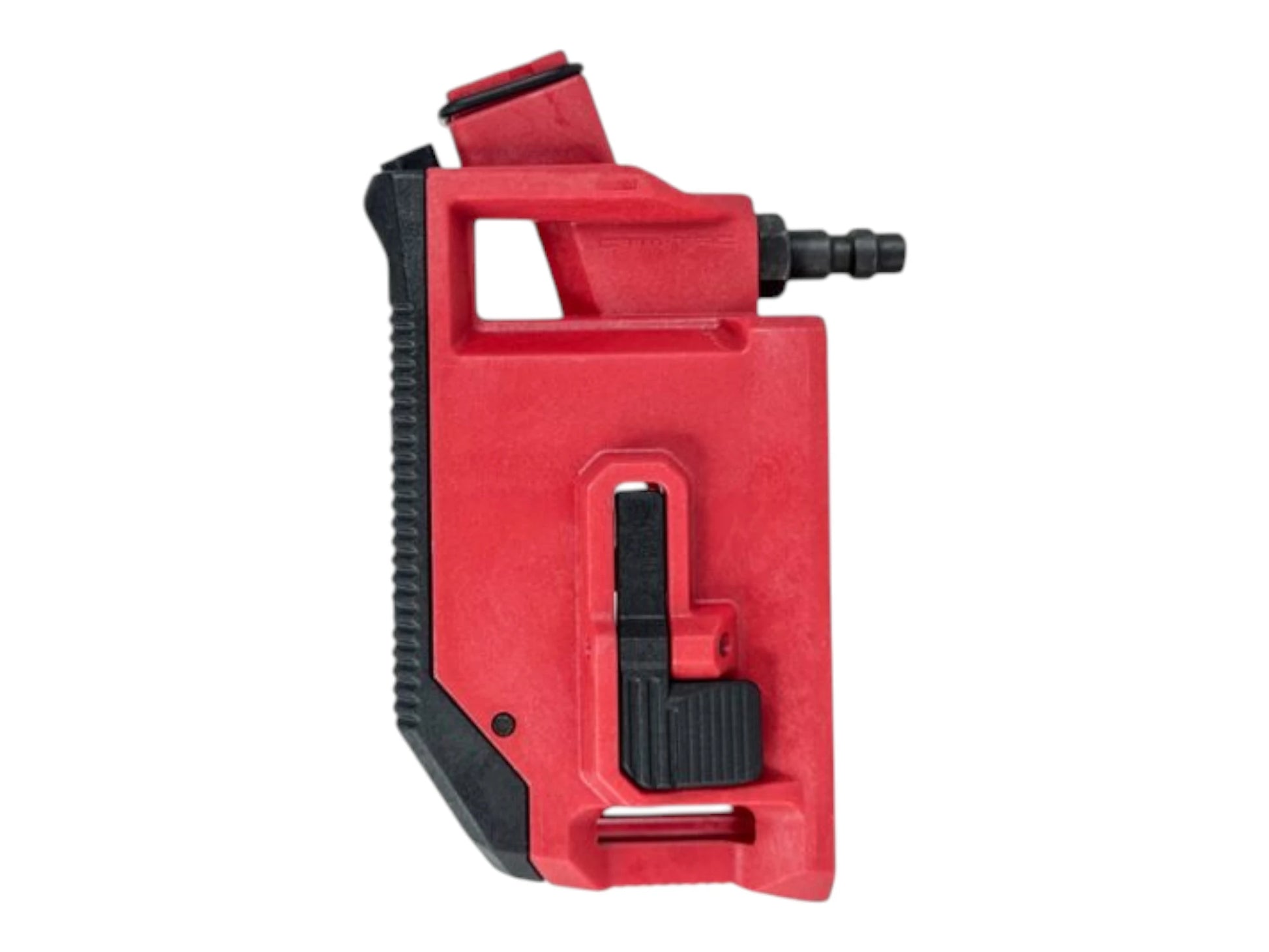

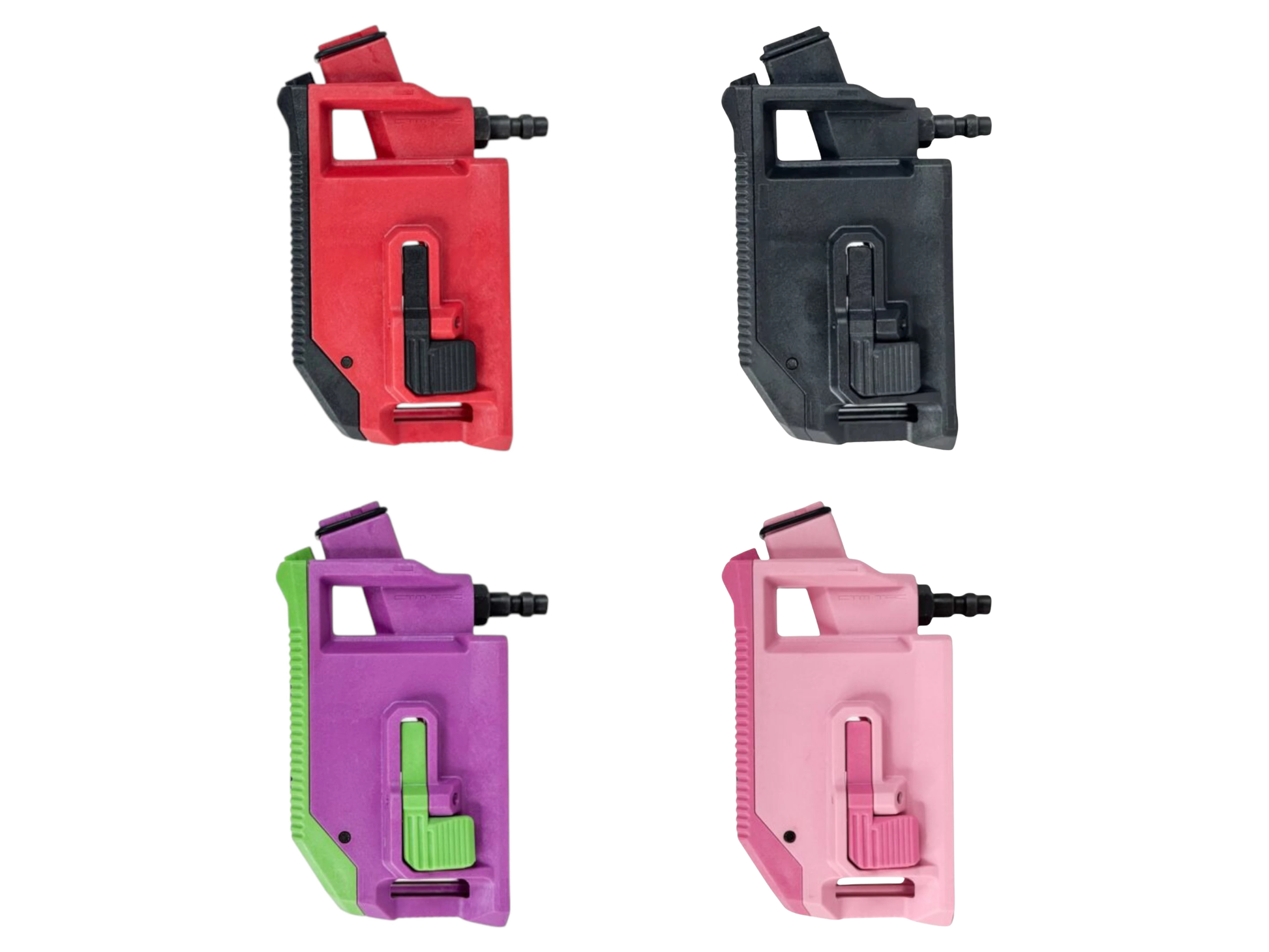

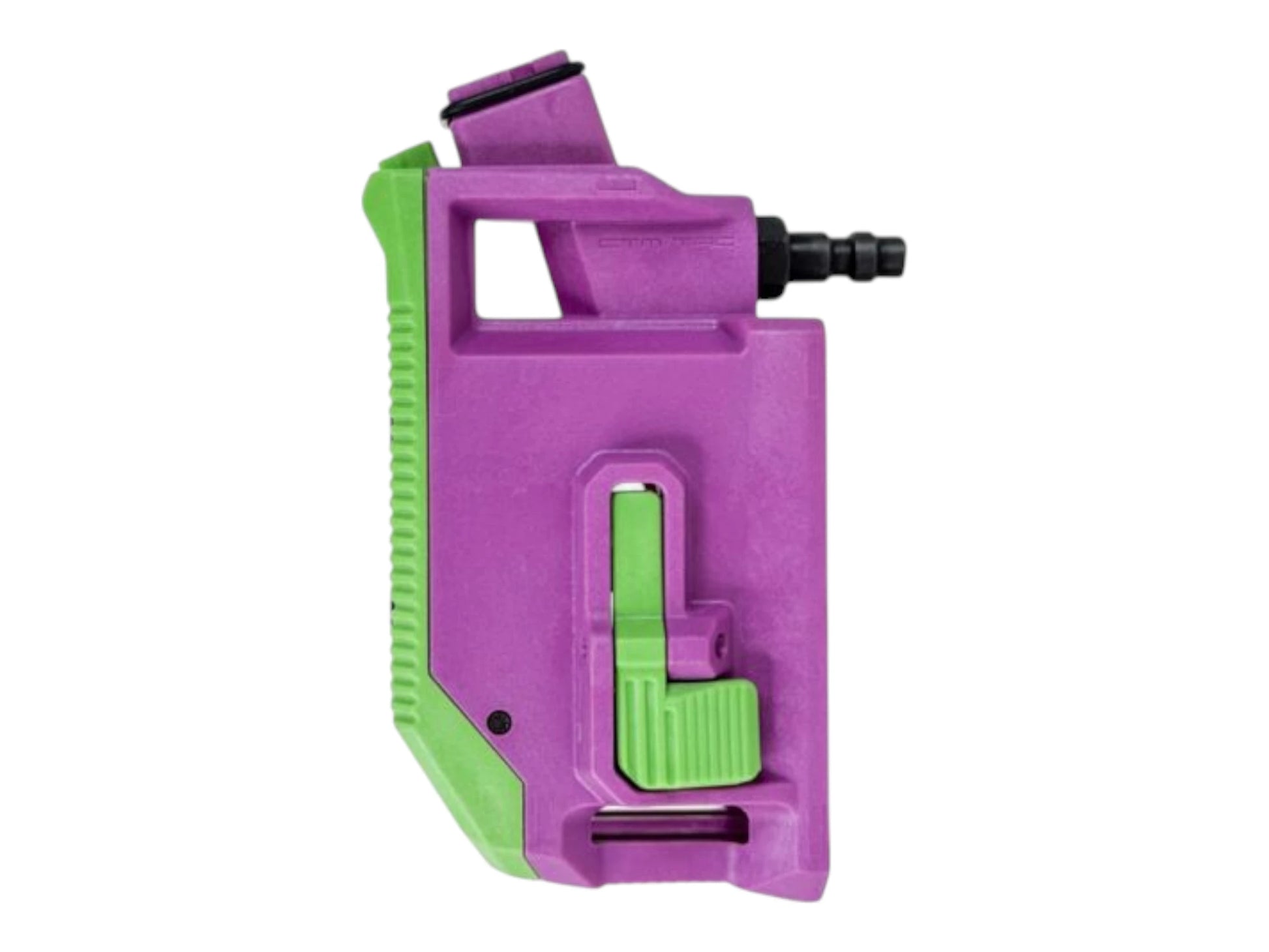

Colours Black, Pink, Red / Black, Violet / Green
⚠ Kit you'll supply: a quality AEG M4 magazine with a strong spring, a regulated HPA tank set to low pressure, and a Foster-fit air line. Storing the magazine only part-loaded between games keeps the spring lively.
⛔ Pressure limit: never push past 140 psi — beyond that you risk excessive wear and damage to the pistol's internals.
