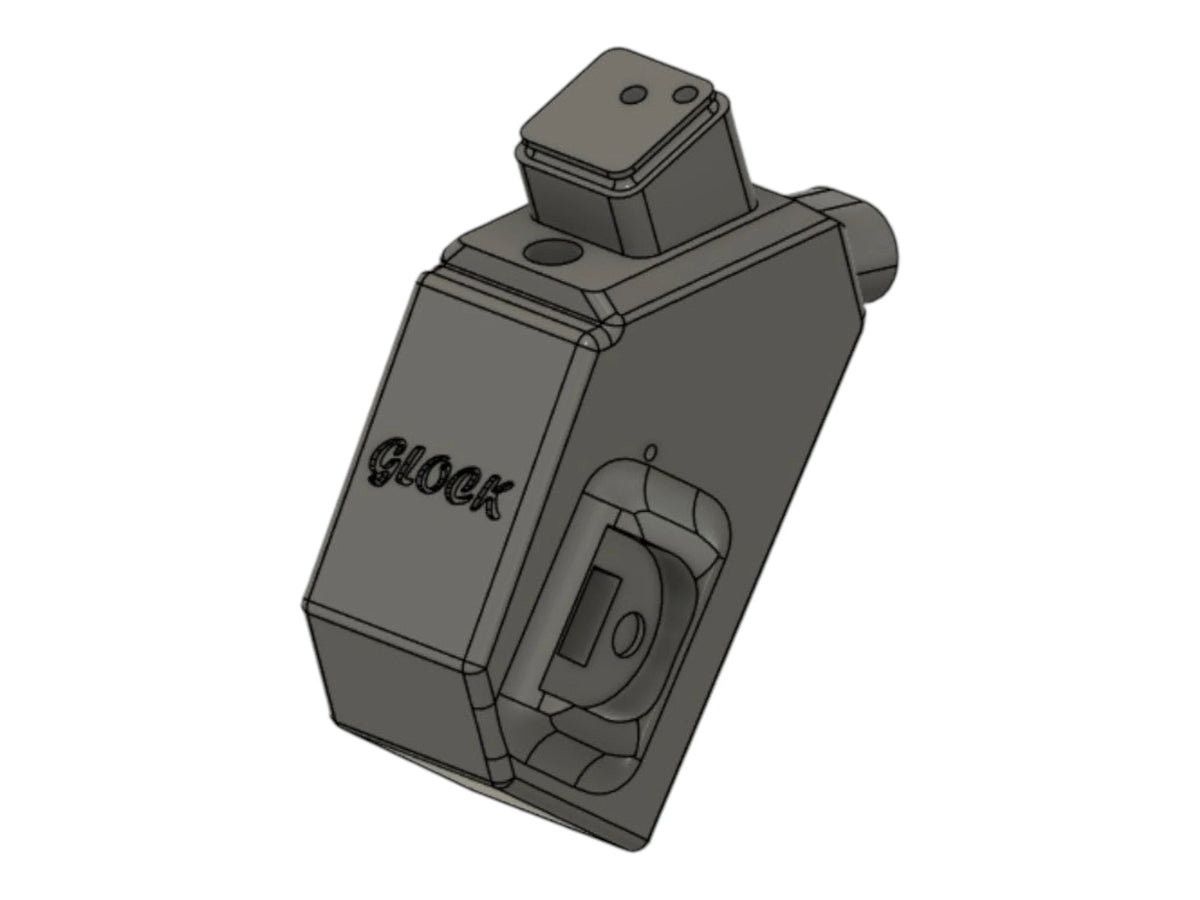

• CAD render of the Kross Airsoft Design Glock and AAP-01 angled HPA adapter, marked Glock on the side

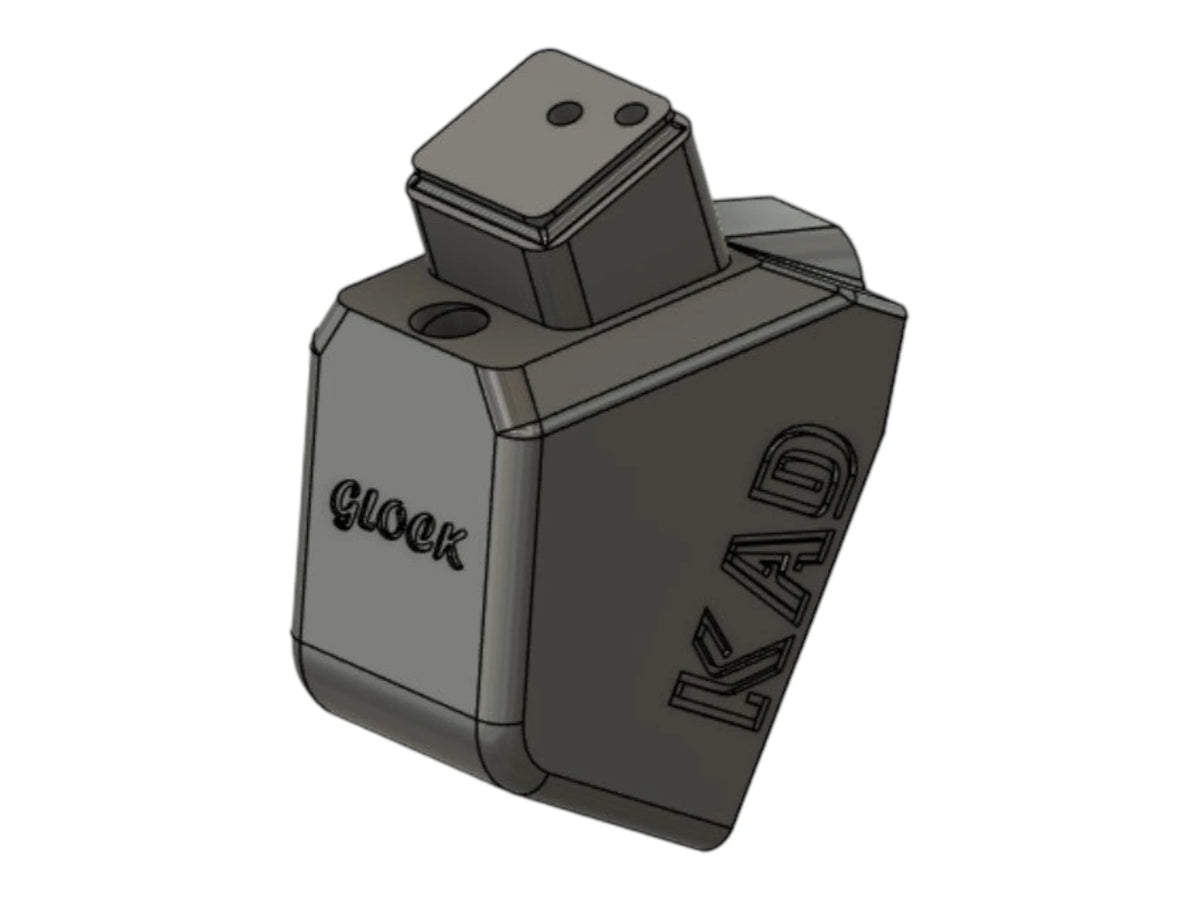

  • CAD render of the Kross Airsoft Design Glock and AAP-01 angled HPA adapter, marked Glock and KAD
1 2

Kross Airsoft Design Glock / AAP-01 Angled HPA Adapter

Kross Airsoft Design Glock / AAP-01 Angled HPA Adapter

£60.00
£60.00
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Package: Adaptor Only
Mag Fitment: M4

DETAILS

SKU: 4095408278
View full details
The angled HPA adapter for the TM Glock and Action Army AAP-01. It cants the magazine back so it stops knocking against cover when you peek.

Every straight HPA adapter has the same problem: the magazine hangs square below the gun, which is exactly where a wall is when you lean out past it. Angling the magazine tucks it back along your forearm and the knocking stops.

It is built in the same MJF Nylon 12 as the rest of the Kross adapter range, so it takes hits rather than splitting. Both the TM Glock and the AAP-01 run the same adapter.

Two things to decide. Mag fitment is M4 or MP5 — pick whichever you already own. Package is adapter only, fully assembled, or send us your mag; the assembled option arrives fitted to a pistol magazine.

Fitting is four steps. Pull the gas block seal out of the bottom of the magazine, move its O-ring onto the Kross adapter, press the adapter down onto the magazine, then drive the long screw through until it bites the thread inside and nip it up. Hook up the line and make sure it holds.

Specifications

Specification Detail
Platforms Tokyo Marui Glock and Action Army AAP-01
Profile Angled
Magazine fitment M4 or MP5
Packages Adaptor only, fully assembled, or send us your mag
Material MJF Nylon 12
Recommended magazine PTS EPM1
Manufacturer Kross Airsoft Design
⚠ Avoid ARES magazines. Kross are explicit that ARES magazines do not sit well with this adapter. Note too that no M4 magazine is supplied — you are buying the adapter.

Frequently asked questions

Is a magazine included? Not with the adapter-only option. The fully assembled option is the adapter fitted to a pistol magazine, not a rifle magazine.

M4 or MP5? Whichever pattern is already in your bag. Neither feeds better; it is about not buying into a second magazine type.

How hard is it to fit myself? One screw and an O-ring transfer. If you would rather not, the assembled option exists.

Why angled rather than straight? Only one reason, and it is a good one: the magazine stops catching on cover.

💡 Titan Forge Airsoft tip: If you play tight sites, angled is the one. In the open it costs you nothing, so there is rarely a reason to choose straight. See our HPA adaptors.
