Nuprol High Speed Motor — Long Type

Nuprol High Speed Motor — Long Type

£54.95
£54.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock

DETAILS

SKU: 29037090
View full details

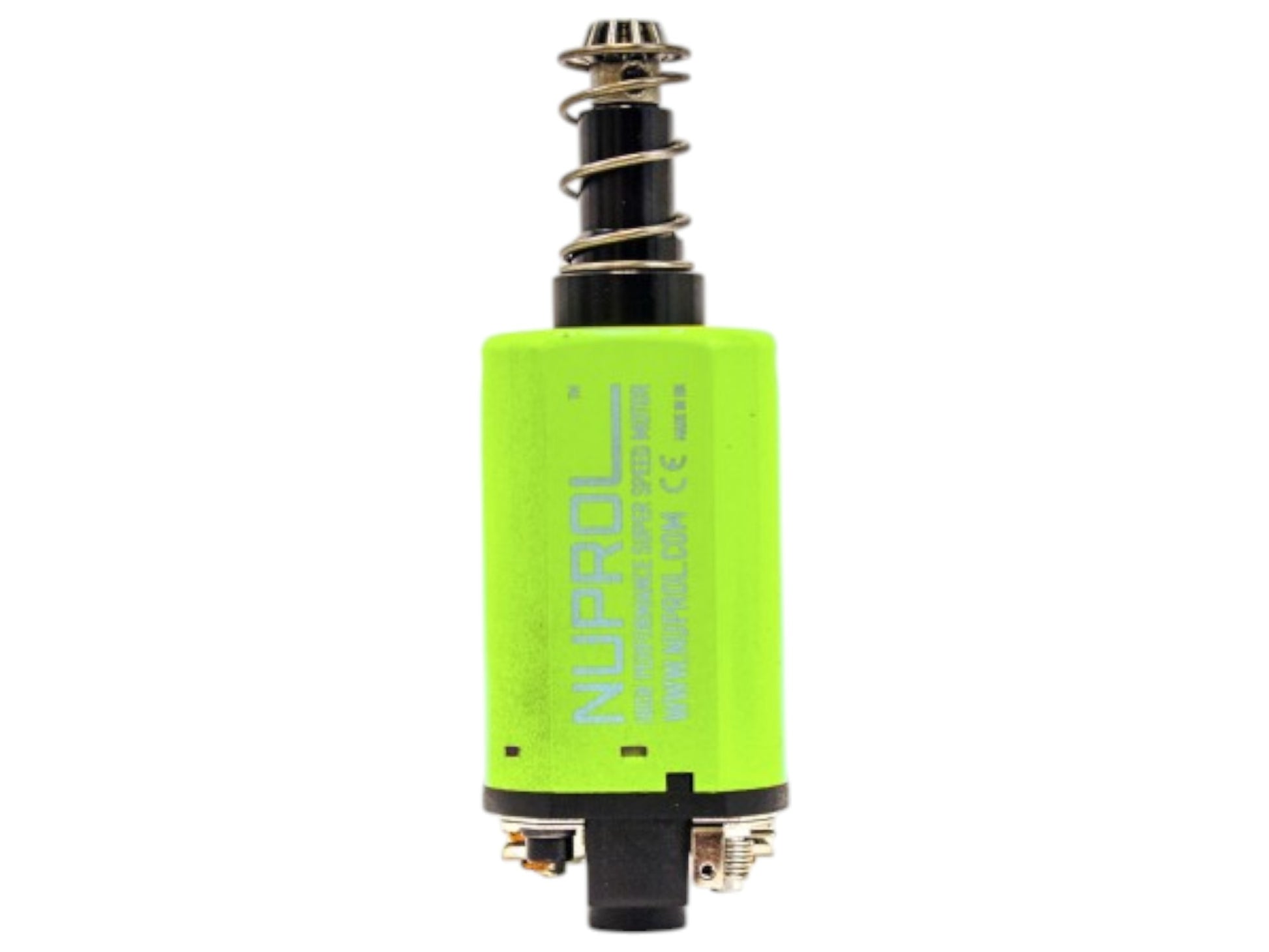

Wound for rate of fire, not for pulling a heavy spring. A long type AEG motor from Nuprol, geared towards speed rather than torque. One hundred and seventy grams, and it drops into the standard long axle motor position.

Every AEG motor is a compromise between two things. Wind it for torque and it will drag a heavy spring round without complaining but will never be quick. Wind it for speed and it spins faster for the same voltage, which is what you feel as trigger response and rate of fire, so long as you have not asked it to compress something enormous.

That makes a speed motor the right choice for a gun running a sensible spring at skirmish power, which in the UK is most of them. Paired with a decent battery it tightens up the gap between pulling the trigger and the BB leaving, and on semi that gap is the whole game.

Long type refers to the axle, not the can. Version 2 gearboxes with a long motor cage take this one; version 3 and some bodies take a short axle, and the two are not interchangeable because the pinion has to meet the bevel gear in the right place.

Specifications

Specification Detail
Type AEG motor, long axle
Tuning High speed
Weight 170 g
Manufacturer Nuprol
Barcode 700315610450
Rated speed Not stated by the manufacturer at time of writing
Torque figure Not stated by the manufacturer at time of writing

Good to know before you buy

Check long against short before you order. The axle length is set by your gearbox and motor cage, not by preference. If you are not sure which your gun takes, tell us the model and we will look it up.

Set the motor height after fitting. The grip screw underneath sets how deeply the pinion meets the bevel gear, and both too deep and too shallow will eat the gears. Wind it in until the gun sounds smooth under load, then back off a touch.

A speed motor is not a cure for a heavy spring. If your gun is over-sprung and down-rated at the chrono, fix the spring first. Springs and gears are in our gearbox parts section.

Frequently asked questions

What is the difference between high speed and high torque?
How the motor is wound. Speed spins faster for the same voltage and pulls less hard; torque is the reverse. Our high torque Nuprol motor is in the same motors section.

What rate of fire will I get?
That depends on your battery, spring, gears and air seal far more than on the motor, so a figure quoted here would be meaningless. Tell us your build and we will give you a realistic answer.

Does Nuprol publish the RPM?
Not for this motor, so we have not put a number in the table. We would rather show you a blank than a figure we cannot stand behind.

Do I need a new battery as well?
Possibly. A speed motor asks for current, and a tired NiMH or a low C rating pack will blunt the improvement. Packs are in our battery section.

⚠ Motor swaps end in stripped gears more often than anything else. The pinion to bevel mesh is set by that one grip screw, and getting it wrong is expensive rather than annoying. If you have not done it before, it is a job worth watching someone do once.
💡 Titan Forge Airsoft tip: Listen to the gun rather than measuring anything. With the mesh right it whirs cleanly; too deep and it whines, too shallow and it clatters. Adjust the screw a quarter turn at a time. More in our motors section.
