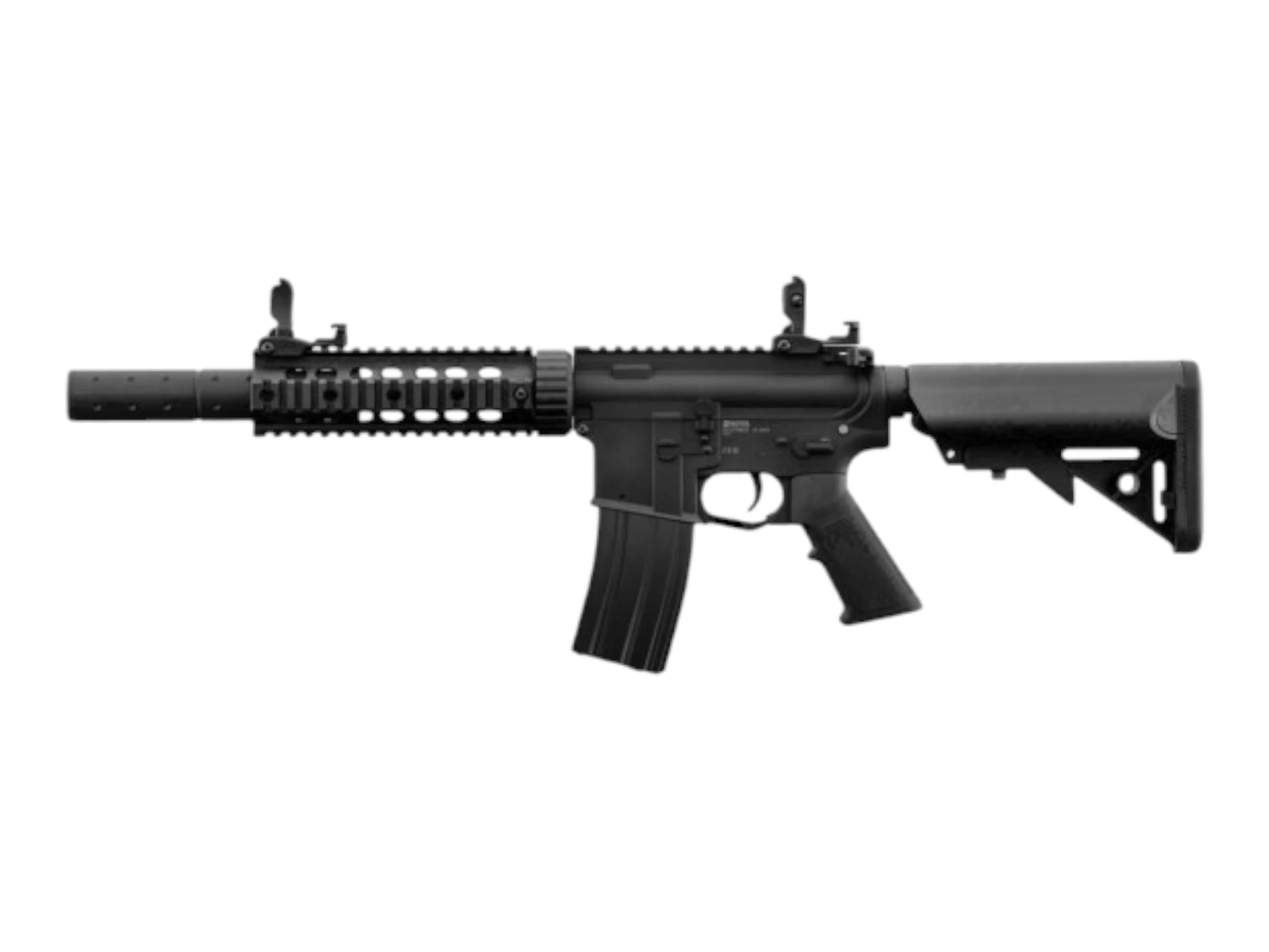

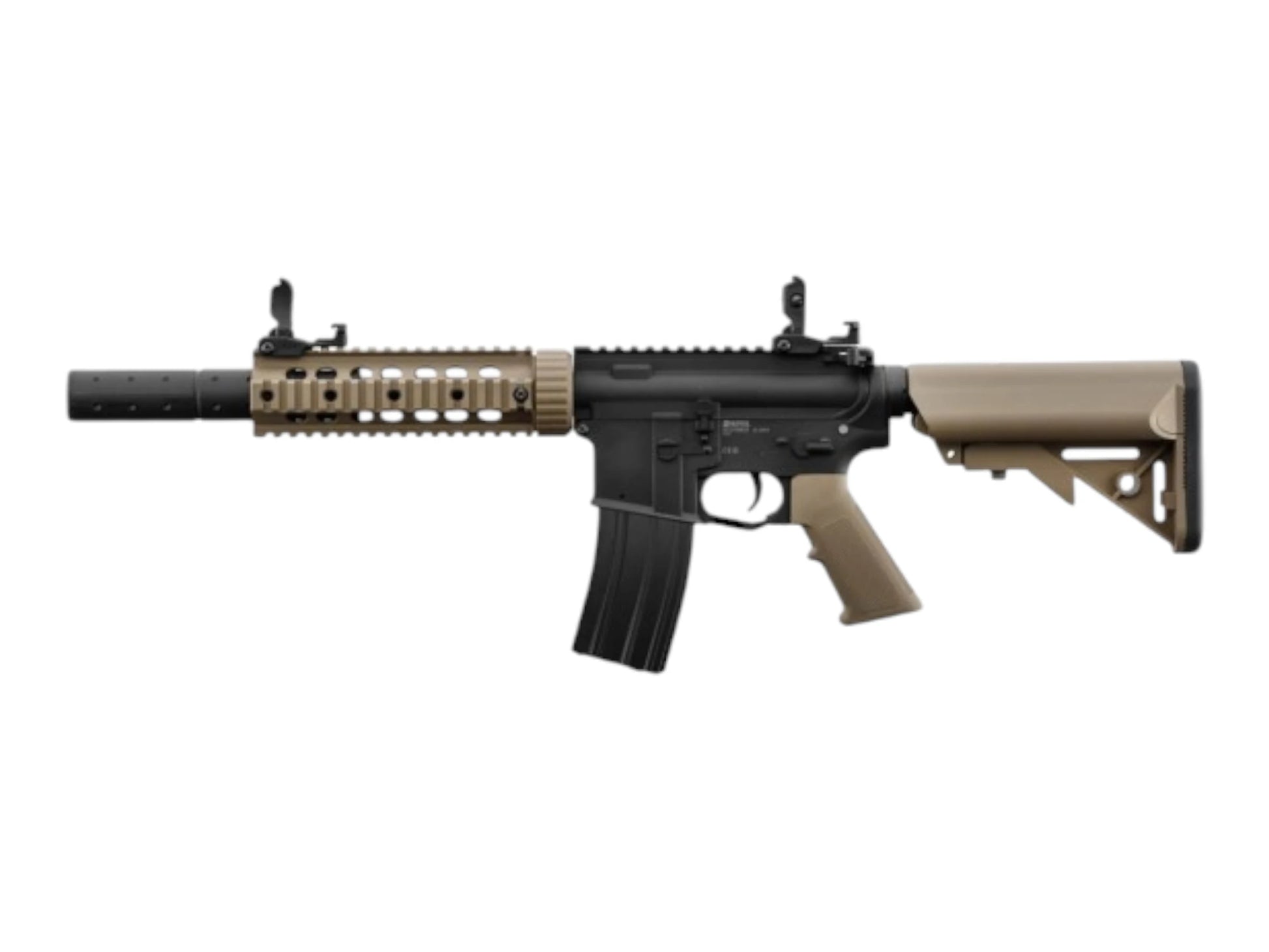

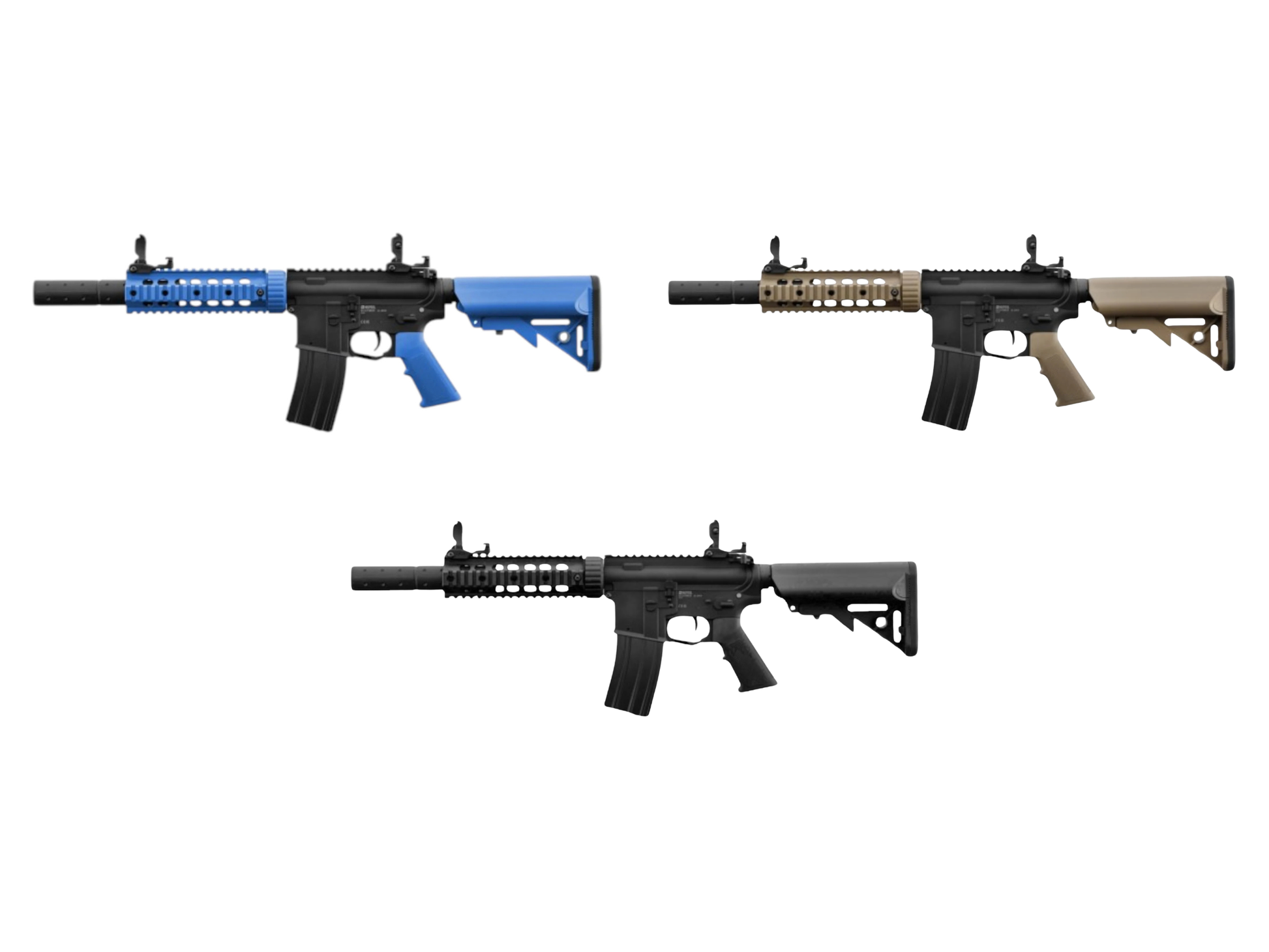

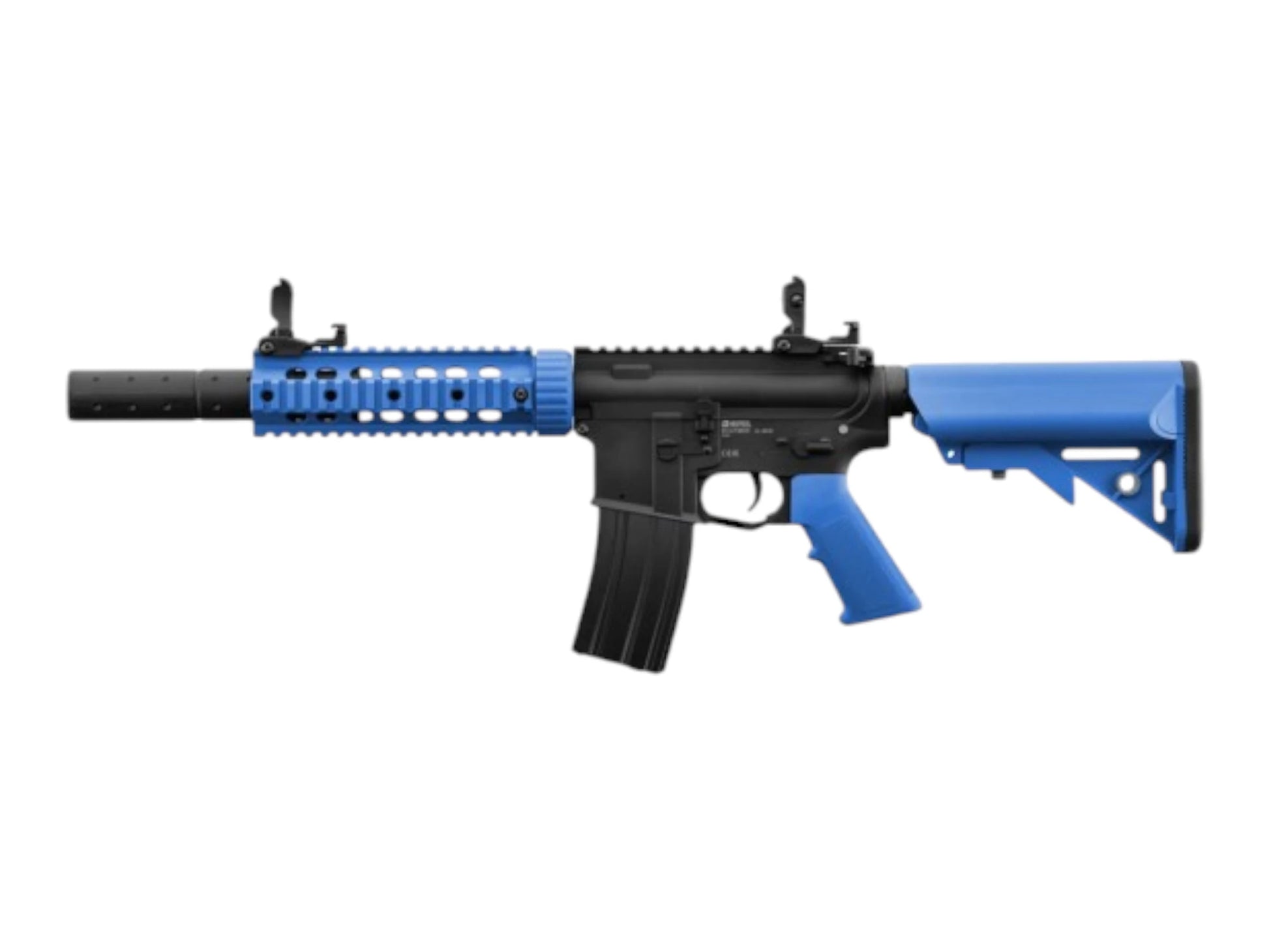

The M4SD is the most traditional-looking rifle in the Pioneer range — full quad RIS handguard, mid-length build, and the silhouette most airsofters first picture when they think "M4". It's a deliberately conventional shape, and that's the point. Standard quad rail mounting means every grip, light, laser, and sight that fits a 20mm RIS will sit on this rifle without an adapter.
Underneath the polymer furniture is the same Gen2 reinforced V2 gearbox running through the entire Pioneer line: 18:1 steel gears, 8mm bearings, a high-torque long-shaft motor, and the M90 quick-change spring system that lets you swap springs without splitting the gearbox. The rotary hop unit and 50° rubber give consistent backspin across the typical UK skirmish BB weight range.
At 724mm overall the M4SD is the sweet spot of the range — long enough to feel like a proper field rifle, short enough not to snag on doorways or thick woodland cover. The Small Tamiya connector and 9.6v NiMH recommendation keep it skirmish-ready out of the box with no rewiring needed before your first game day.
Specifications
| Specification | Detail |
|---|---|
| Powered By | Electric |
| Calibre | 6mm BB |
| Muzzle Energy | 1J (~330 FPS with 0.20g) |
| Fire Modes | Safe / Semi / Full-Auto |
| Inner Barrel | 6.03mm precision |
| Barrel Thread | 14mm CCW |
| Hop-Up | Rotary, 50° hop rubber |
| Gearbox | Reinforced V2, Gen2 internals |
| Gears | 18:1 steel, 8mm ball bearings |
| Motor | High-torque long-shaft (21,000 RPM) |
| Spring | M90, quick-change |
| Receivers / Handguard | Nylon fibre polymer |
| Internals | Steel cylinder head, metal outer barrel, charging handle, bolt catch |
| Magazine | 120R mid-cap supplied; M4/AR-15 AEG compatible |
| Battery Connector | Small Tamiya |
| Recommended Battery | 9.6v NiMH |
UKARA: As a realistic imitation firearm, this product requires UKARA registration or a valid defence. We verify at checkout. Register by playing 3 games over 56+ days at Skirmish Wycombe Airsoft.
