- description

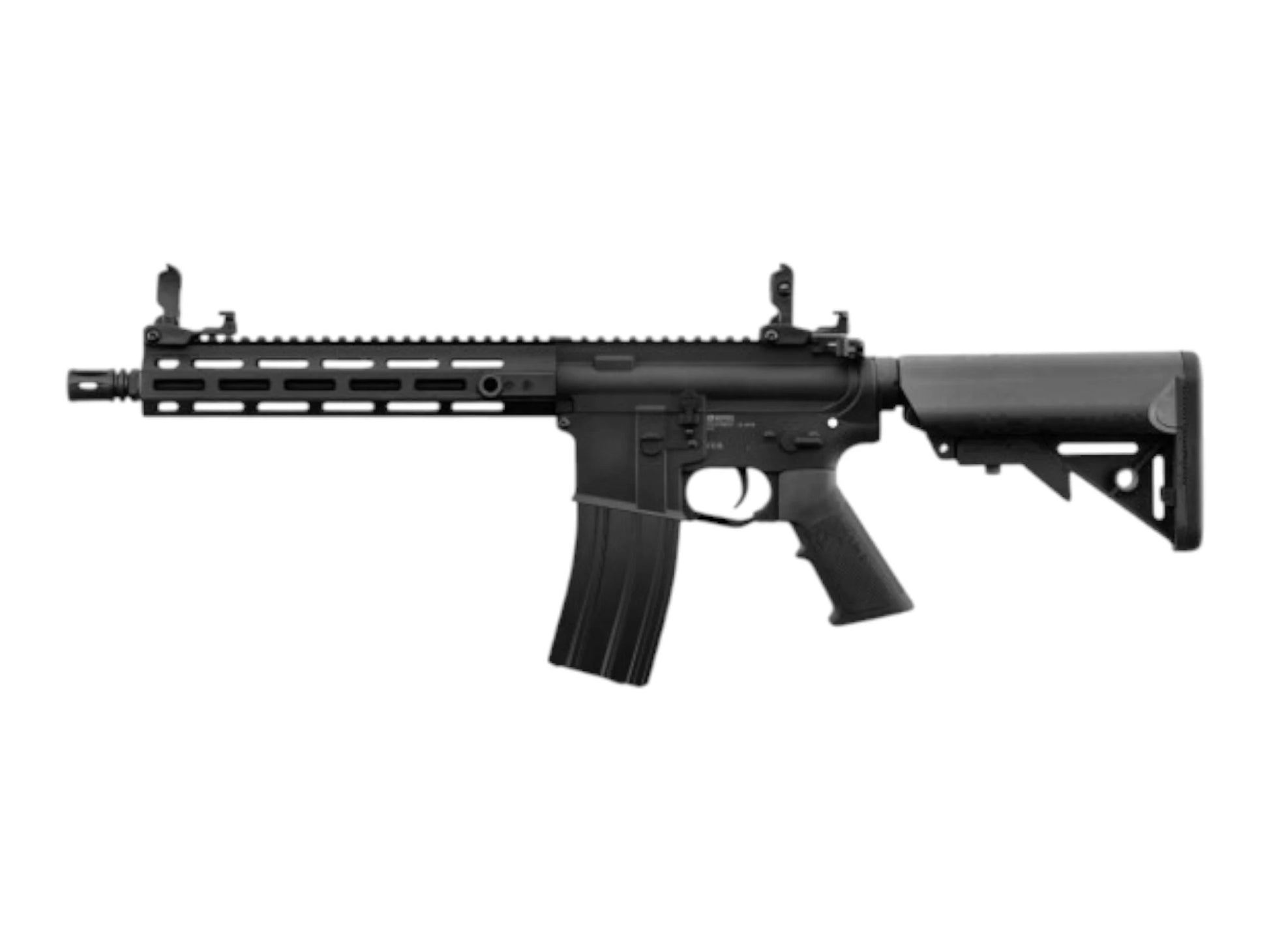

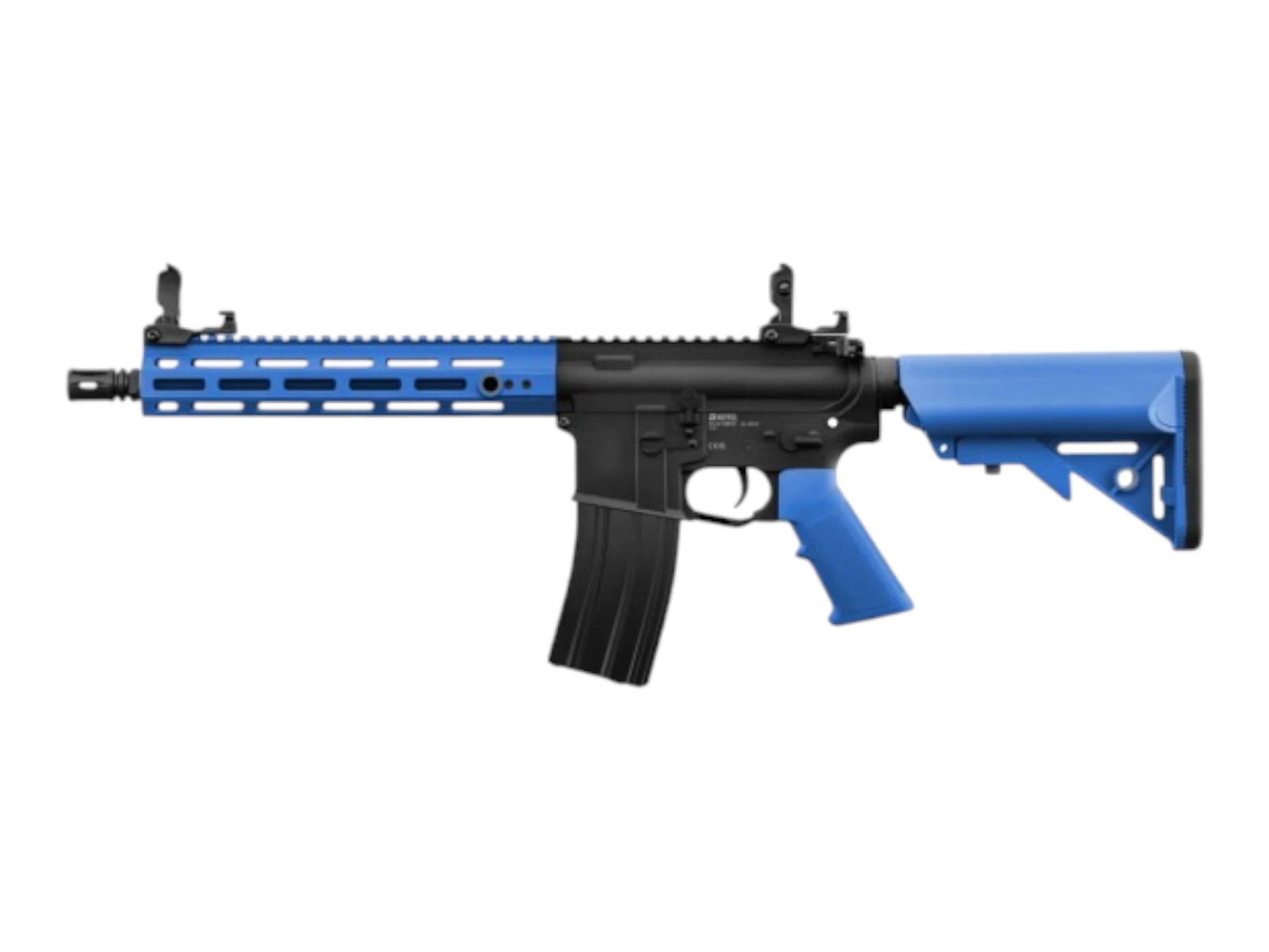

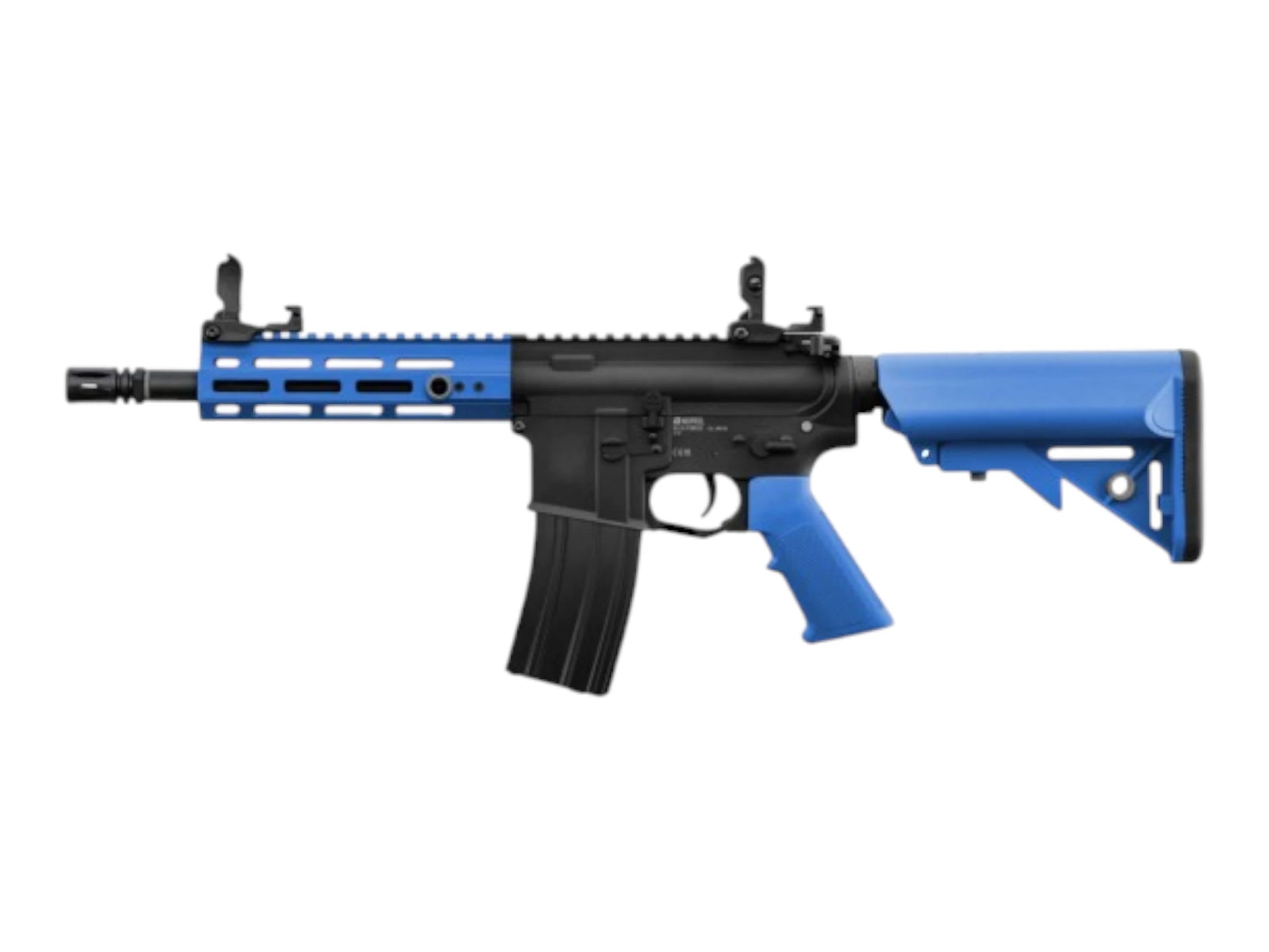

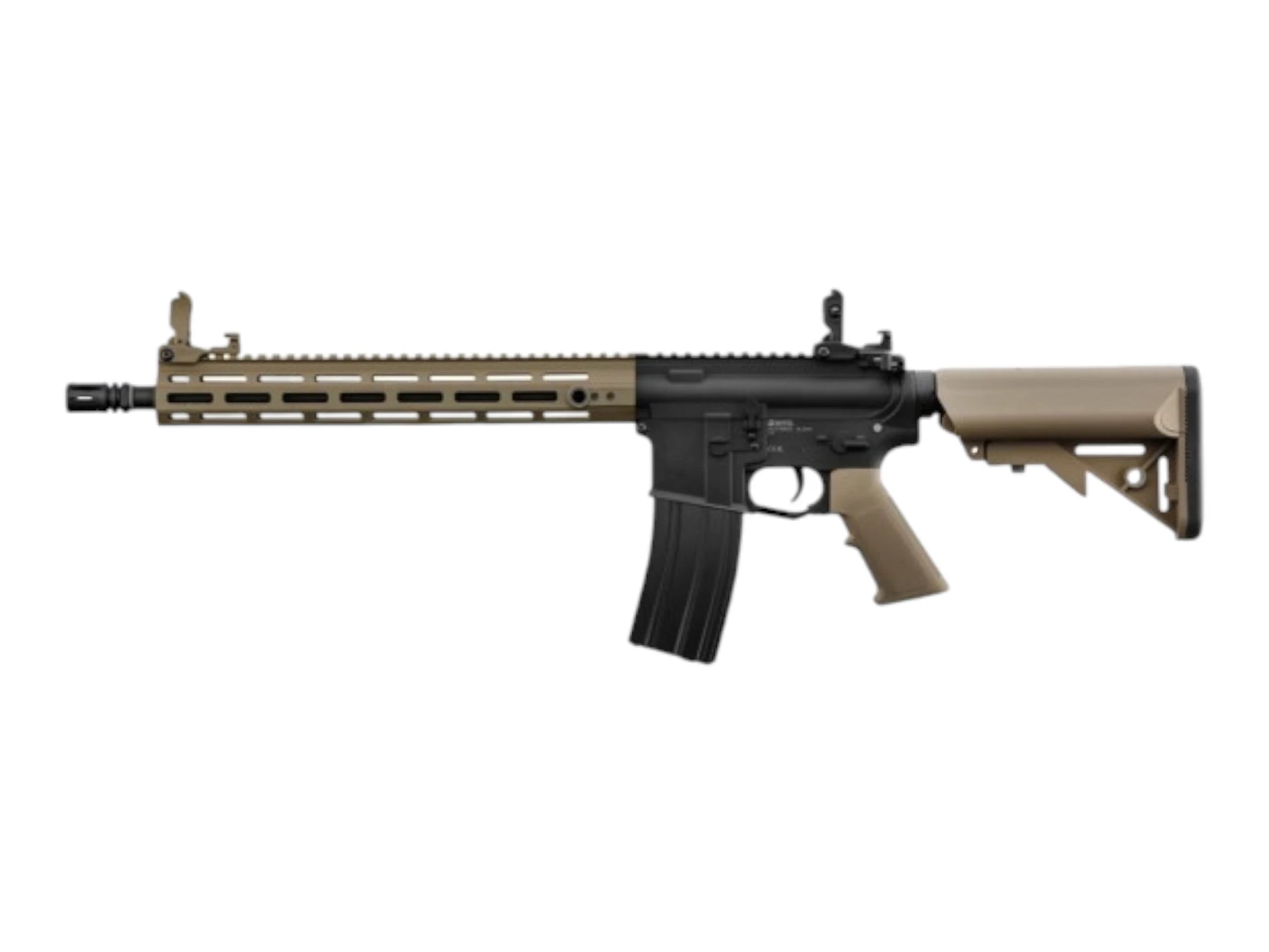

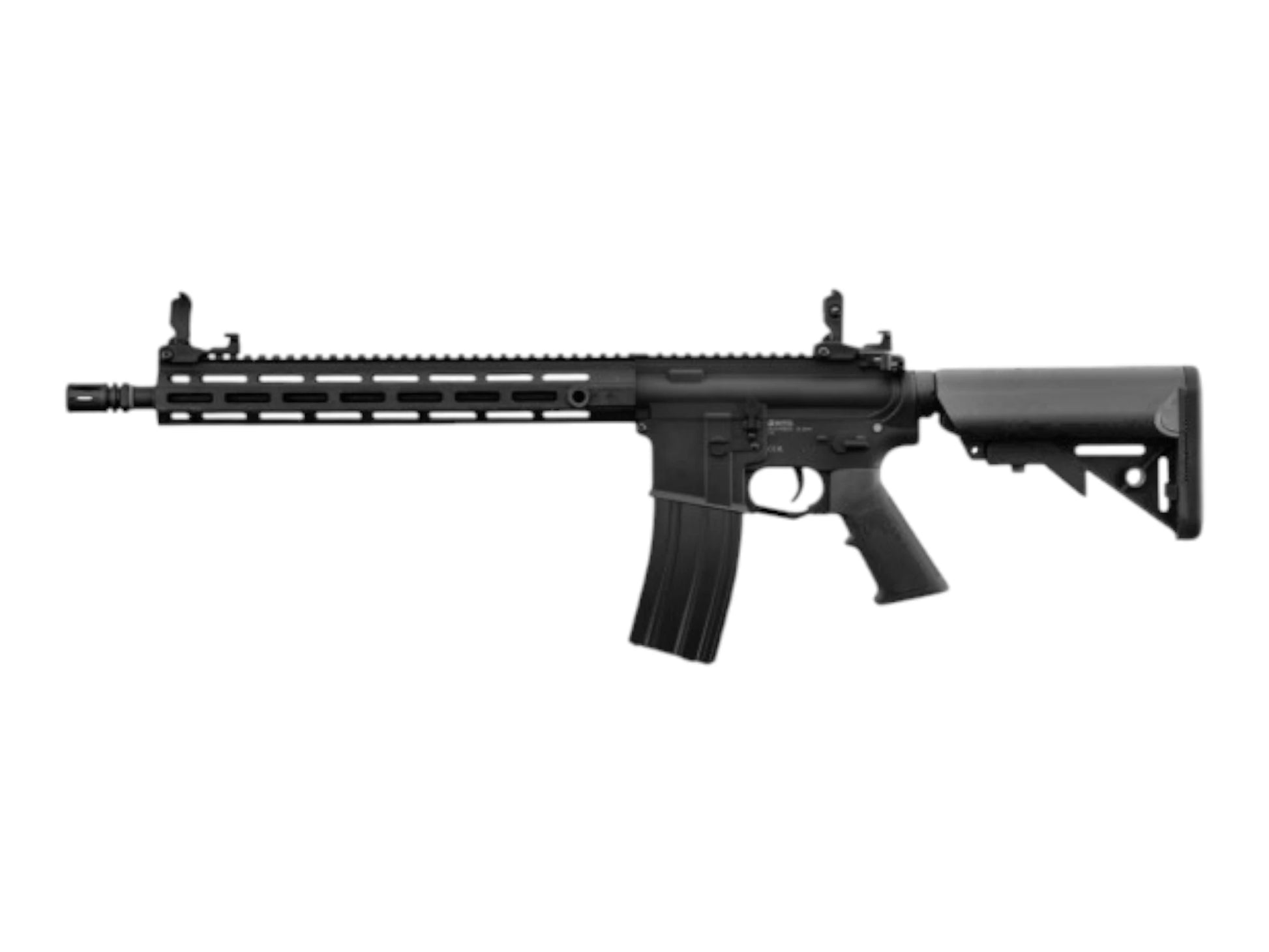

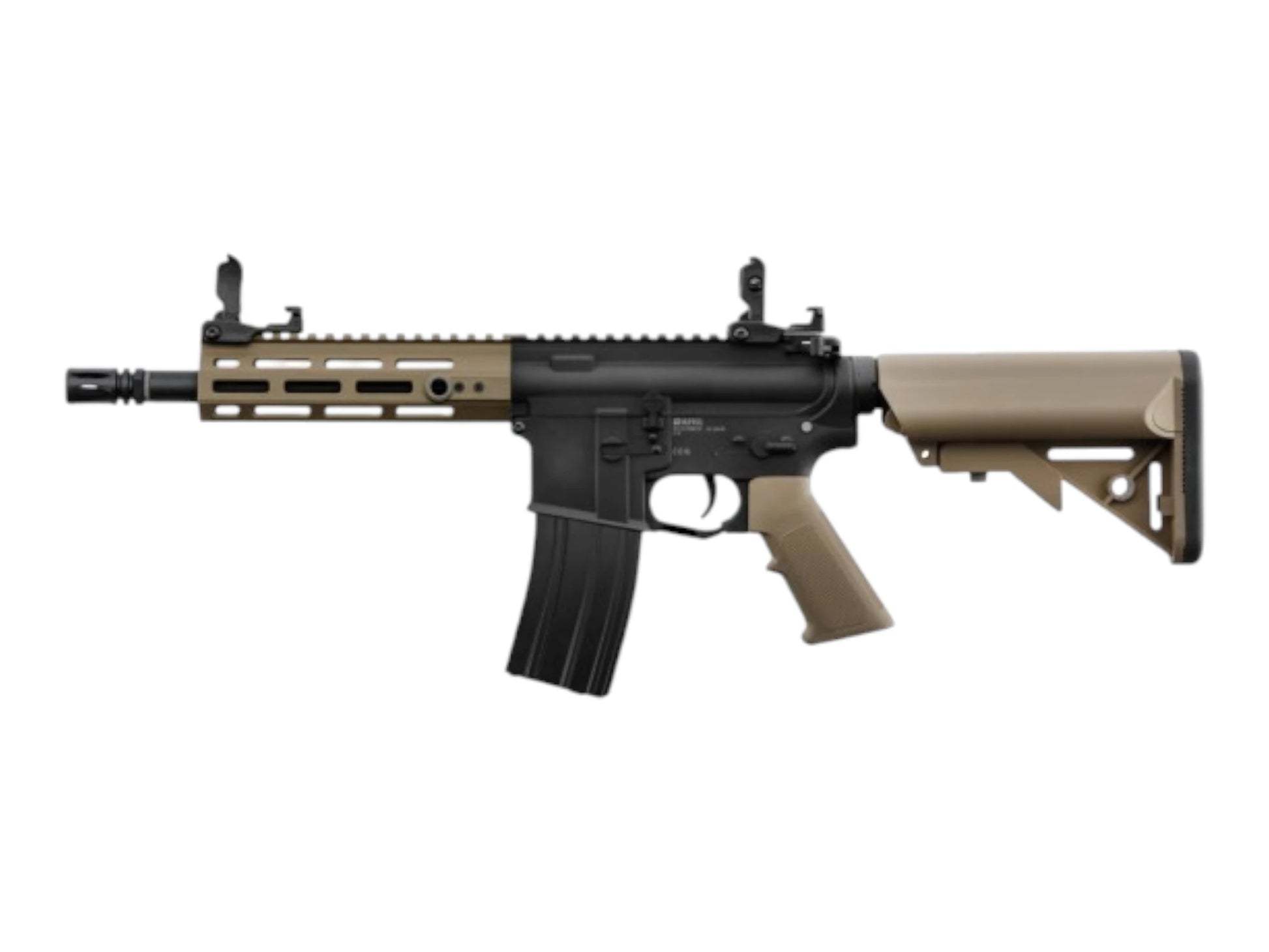

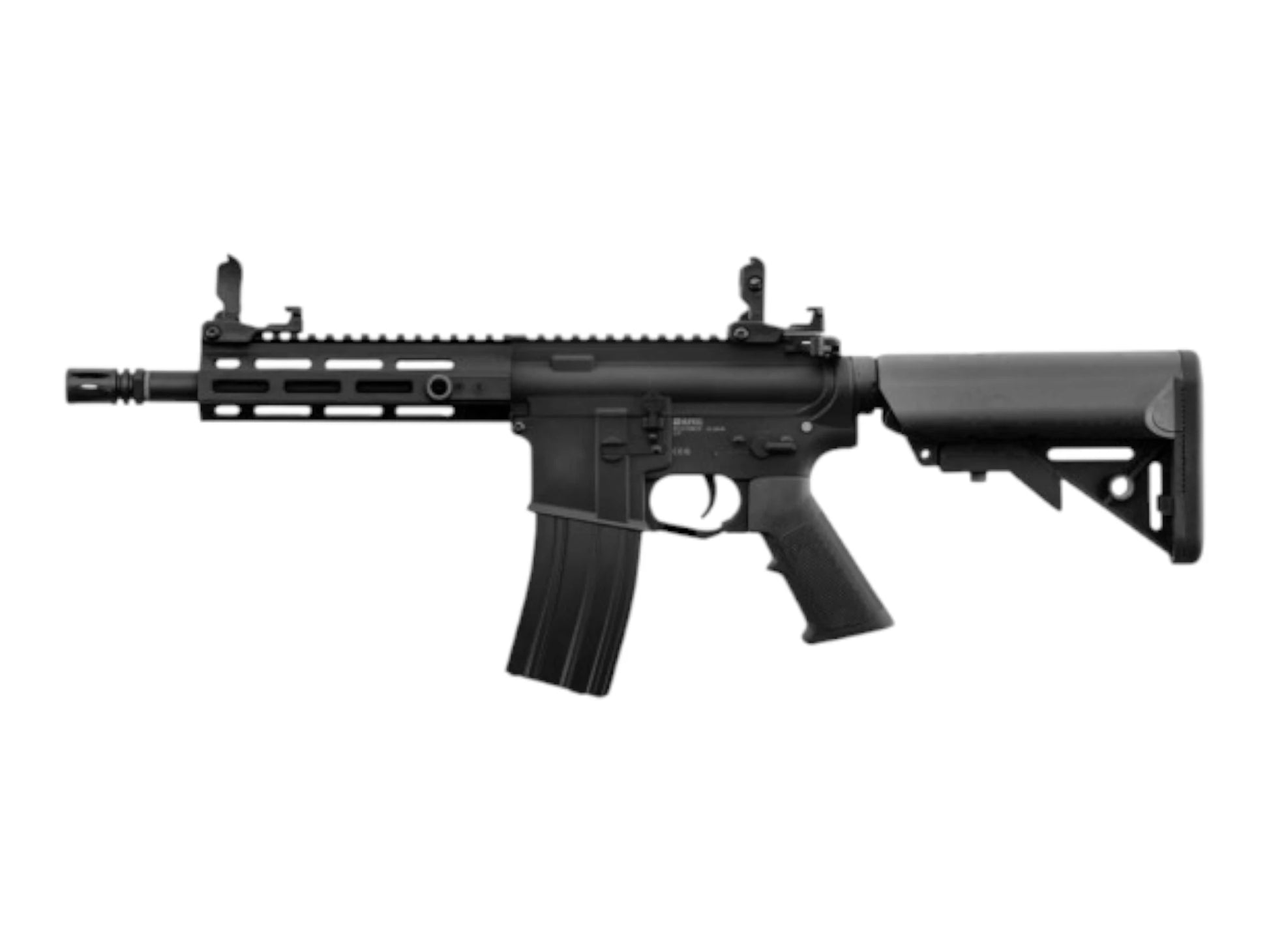

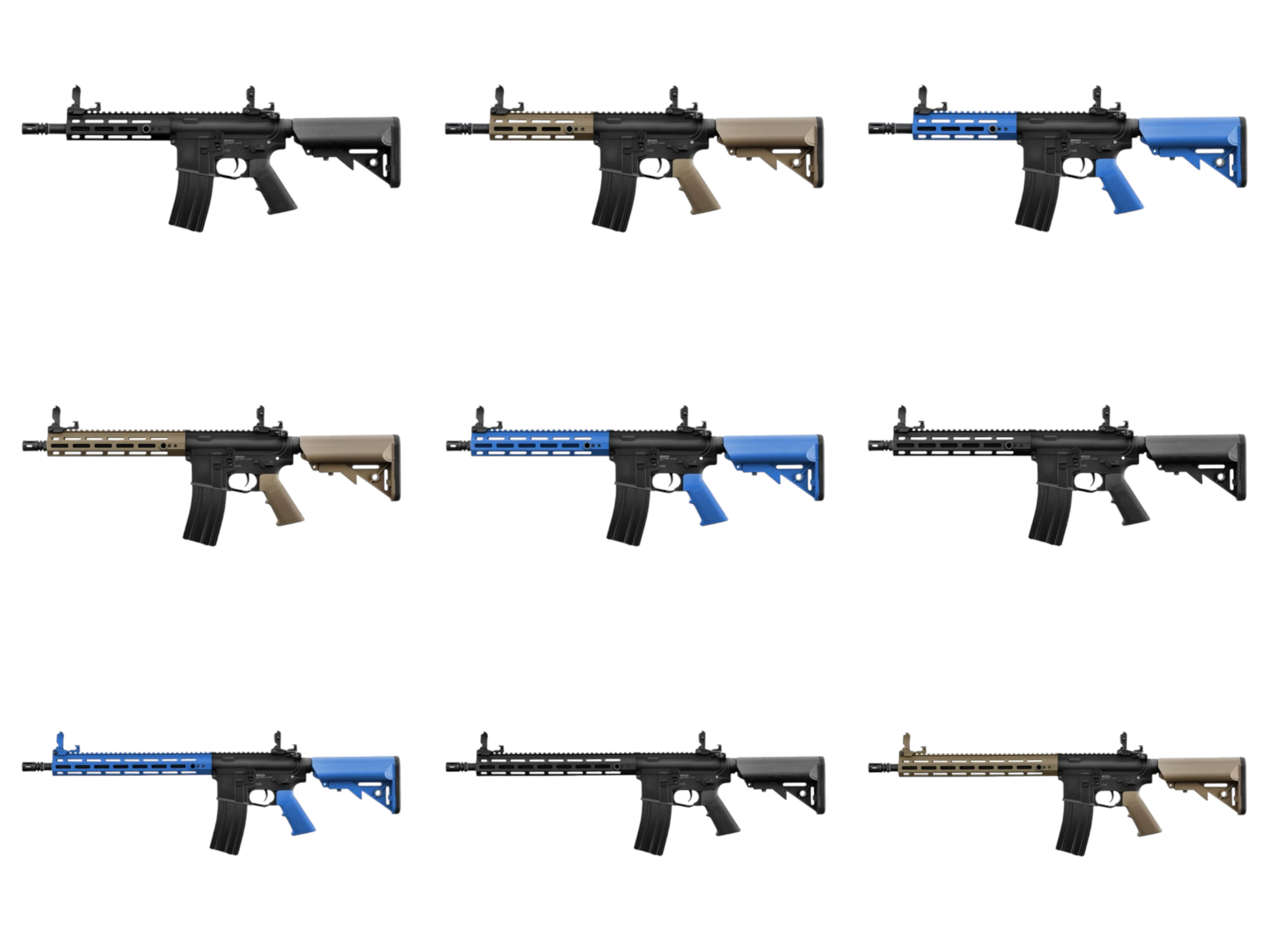

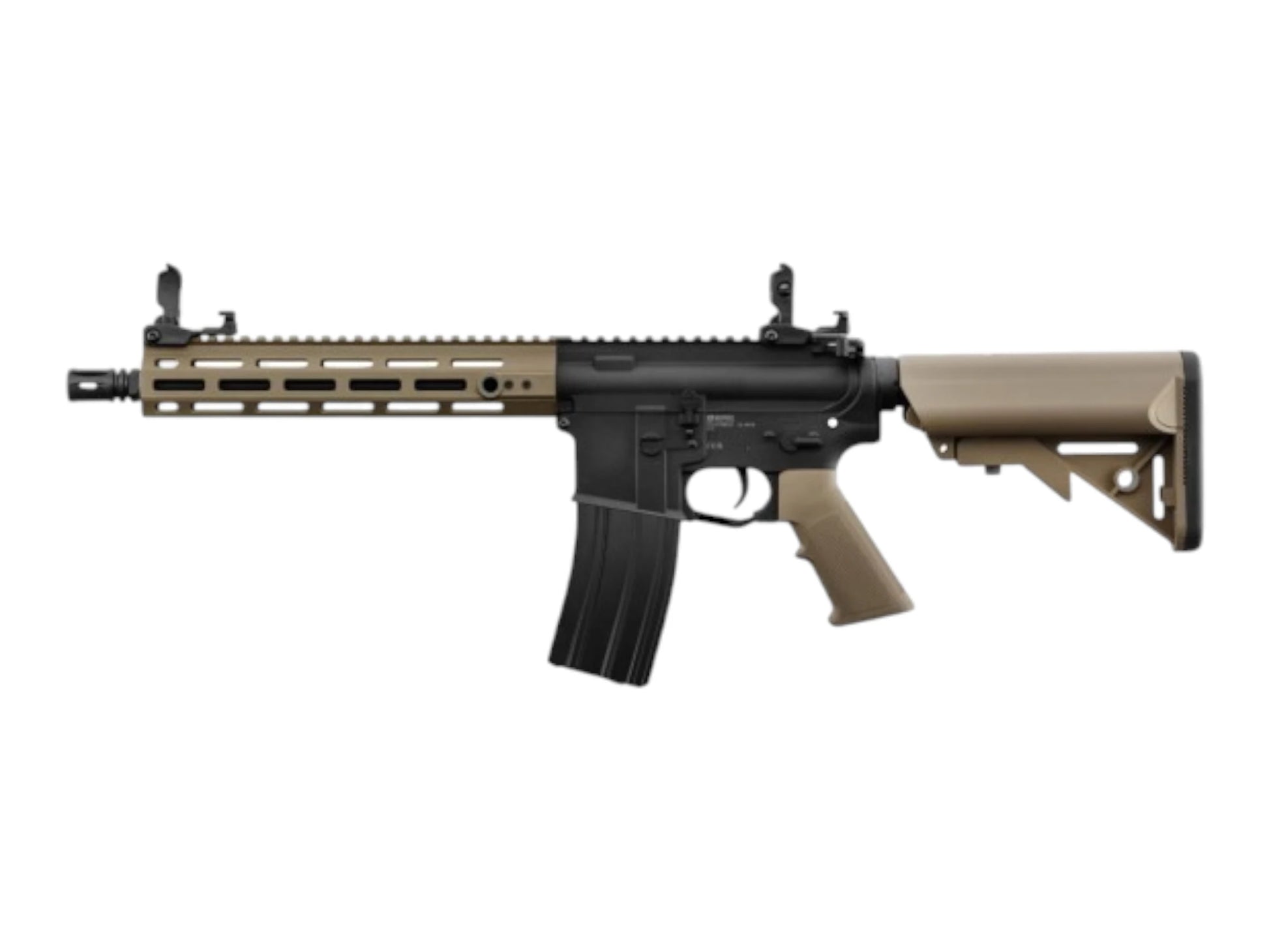

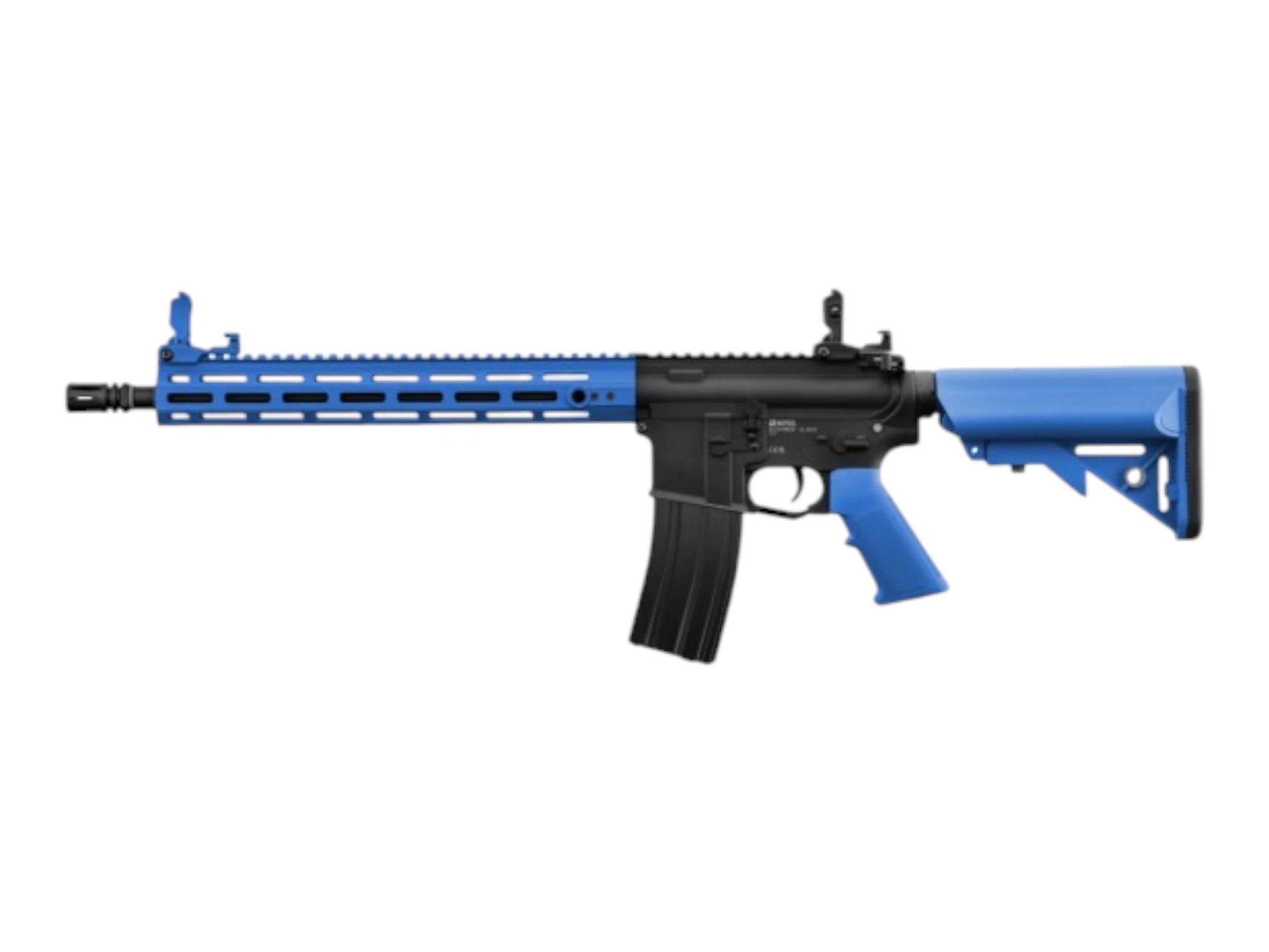

The Nomad is the configurable rifle in the Pioneer range. Same gearbox, same internals, same magazine — what changes is the front end. 7" for indoor CQB, 10" as the all-rounder, 13" for outdoor woodland where you want every inch of inner barrel you can get. Overall length runs from 623mm (7") through 749mm (10") to 825mm (13").
The handguard styling is the second differentiator versus the rest of the Pioneer line. Instead of bulky RIS quad rails, the Nomad uses a modern slim accessory-rail handguard — cleaner profile, lighter to hold, and still with the mounting points where players actually attach things rather than every inch wrapped in Picatinny rail.
Internals are unchanged from the rest of the Pioneer family: reinforced V2 gearbox, 18:1 steel gears, 8mm ball bearings, M90 quick-change spring, rotary hop with 50° rubber, and the steel cylinder head. Each length runs the same M90 spring and produces around 330 FPS with 0.20g — the inner barrel difference between lengths is enough to make the 13" feel slightly more settled with heavier BBs, but not enough to chrono-out at most UK sites.
Specifications
| Specification | Detail |
|---|---|
| Powered By | Electric |
| Calibre | 6mm BB |
| Muzzle Energy | 1J (~330 FPS with 0.20g) |
| Fire Modes | Safe / Semi / Full-Auto |
| Inner Barrel | 6.03mm precision |
| Barrel Thread | 14mm CCW |
| Hop-Up | Rotary, 50° hop rubber |
| Gearbox | Reinforced V2, Gen2 internals |
| Gears | 18:1 steel, 8mm ball bearings |
| Motor | High-torque long-shaft (21,000 RPM) |
| Spring | M90, quick-change |
| Receivers / Handguard | Nylon fibre polymer |
| Internals | Steel cylinder head, metal outer barrel, charging handle, bolt catch |
| Magazine | 120R mid-cap supplied; M4/AR-15 AEG compatible |
| Battery Connector | Small Tamiya |
| Recommended Battery | 9.6v NiMH |
UKARA: As a realistic imitation firearm, this product requires UKARA registration or a valid defence. We verify at checkout. Register by playing 3 games over 56+ days at Skirmish Wycombe Airsoft.
