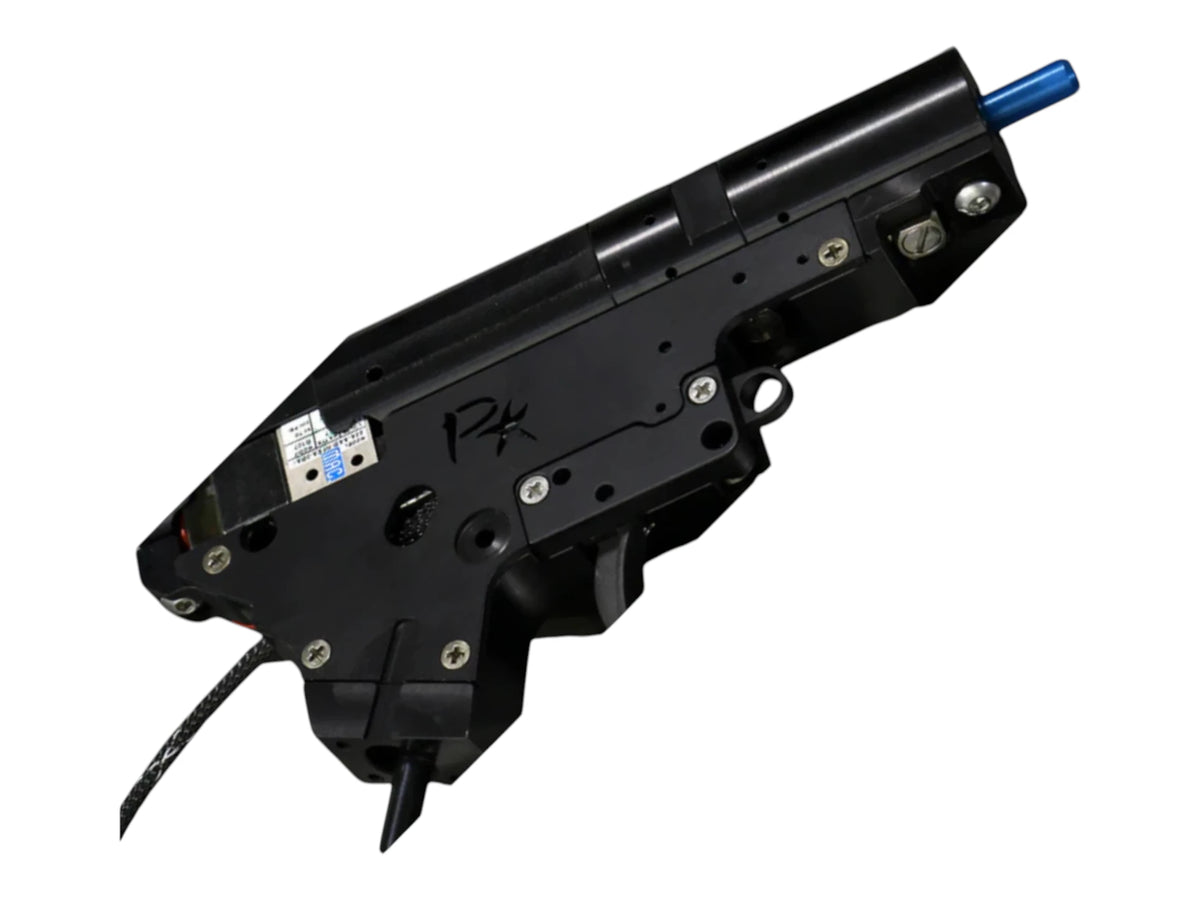

PolarStar Fusion Engine Drop-In Kit — M249

A support weapon is the build that benefits most from going to air. A box magazine will feed a far higher rate than a gearbox wants to sustain, and the thing that usually gives out first on an electric M249 is the gearbox itself — stripped pistons, cracked shells, the rest of it. Replacing the whole gearbox with a machined aluminium chassis and a solenoid takes that failure mode off the table, which is why so many long-serving LMGs in this country run the Fusion.

This is a complete chassis swap, not a drop-in cylinder. The entire original gearbox comes out and the Fusion assembly goes in, carrying its own trigger micro-switch fitted to the frame. PolarStar include the filter fitting already installed, the FCU, the switchboard, the wire harness and whatever extra pieces the M249 specifically needs — so the box contains the conversion rather than the start of one.

It is a dual solenoid design running a closed bolt, and the practical consequence is that you set firing air and feeding separately. The poppet governs the air behind the BB and the nozzle governs how it is loaded, and because they are independent you can chase rate of fire without wrecking your velocity, or settle the feed on a box mag that is being asked to work hard. Closed bolt also makes the engine less fussy about hop-up setup than an open-bolt system, which matters on a gun firing long bursts.

PolarStar quote 550 fps on a 0.20 g BB at 120 psi and 30 rounds per second and above. Neither of those is a UK number — the point is headroom. Six nozzles of differing restriction shift the whole adjustment window up or down, so you tune down to your site limit from a position of surplus rather than trying to squeeze more out of something marginal. Set for field energy and running restrictive internals, the same engine returns over 400 shots from a 13/3000 bottle.

Specifications

Good to know

What does the box actually contain? The engine and chassis with the filter fitting fitted, the FCU, the switchboard, the wire harness and the M249-specific conversion parts. You add a bottle, a regulator and line, and a battery.

Will 550 fps get me thrown off site? That is the figure at 120 psi, not a setting you would play on. You tune to your venue's limit at the regulator and confirm it over a chronograph — support weapons usually sit under a tighter limit and a minimum engagement distance, so check both.

Which M249 does it fit? The Classic Army and A&K pattern. If yours is another make, send us the model before ordering.

Can I use it for gel ball? PolarStar can configure a Fusion for gel ball, but it is a build-to-order change rather than a switch on the unit.

Is the trigger any good? The micro-switch is fitted to the frame rather than adapted to it, so you get a defined break, a hard stop and a short reset.
