Wolverine Airsoft MTW AK-105 XB — HPA AK Platform

Wolverine Airsoft MTW AK-105 XB — HPA AK Platform

£900.00
£900.00
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

DETAILS

SKU: 17962281
View full details
📖 New to HPA? This runs on external high pressure air — it needs a tank, a regulator and a line before it will fire a shot. Read our complete HPA guide before buying.

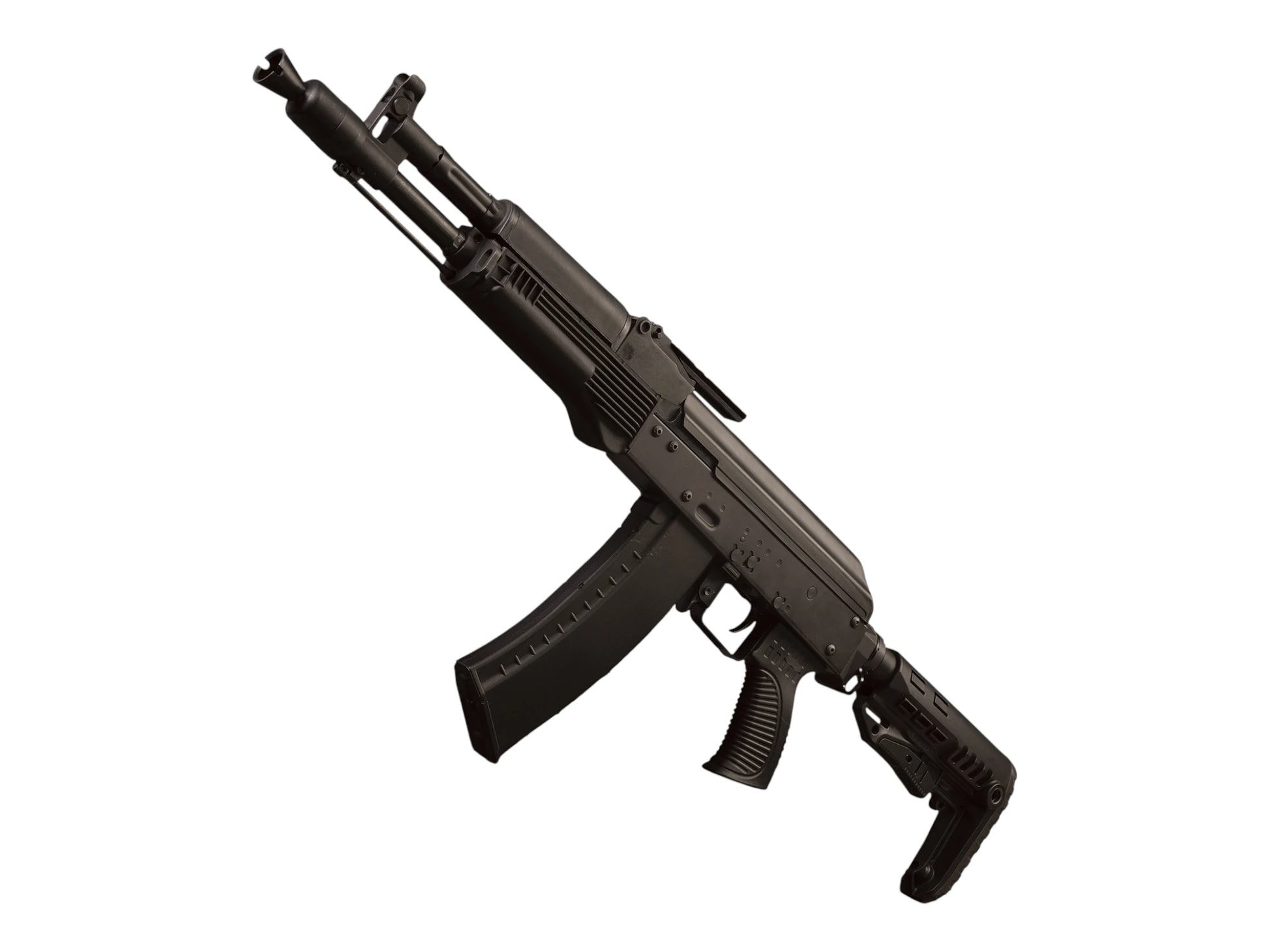

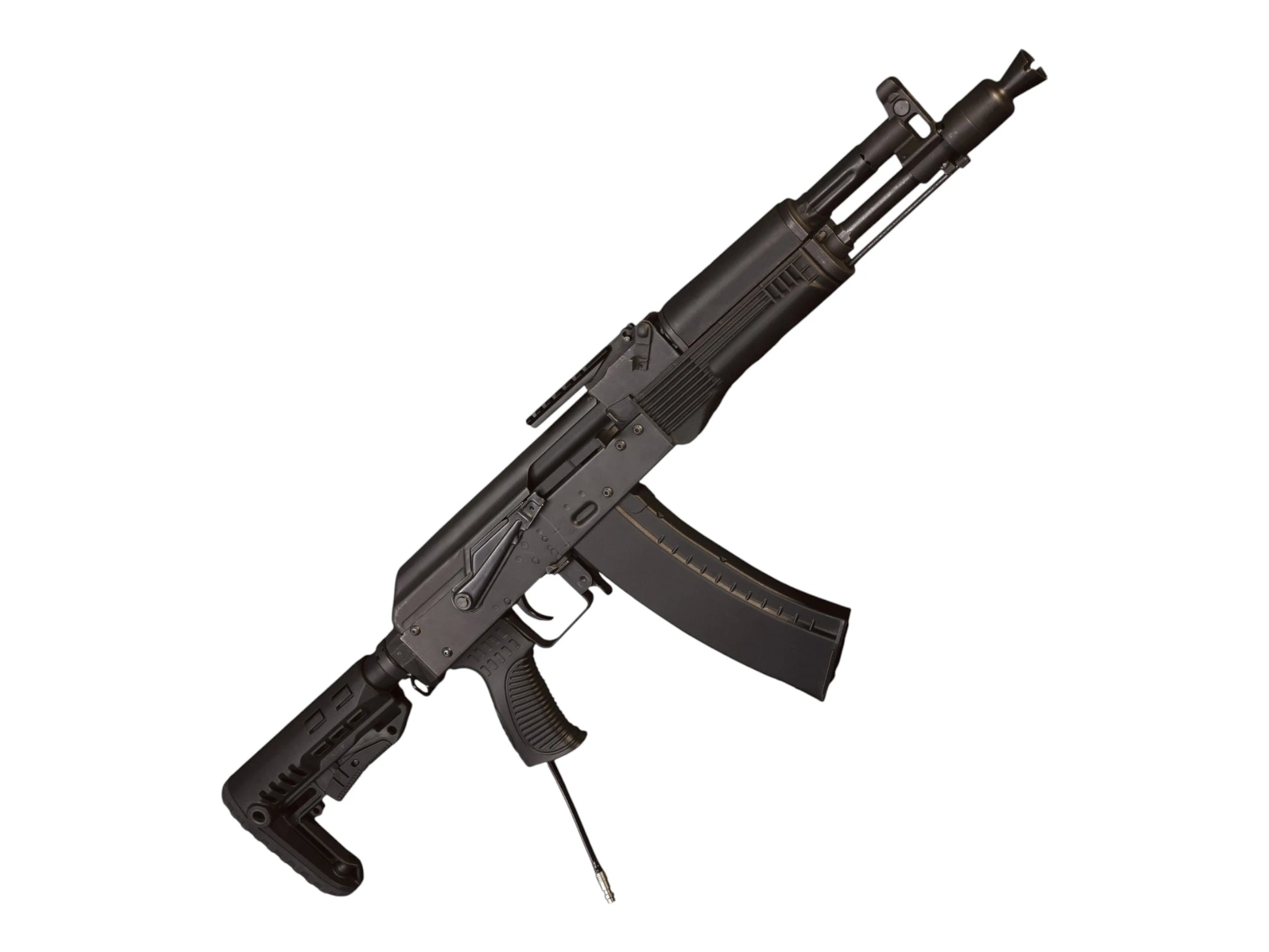

An actual stamped steel AK, running HPA. Wolverine built the AK-105 on an authentic stamped receiver set rather than a machined block, and aligned it with a CNC aluminium and steel trunnion and engine chassis. INFERNO XTS with the BLINC Bluetooth FCU.

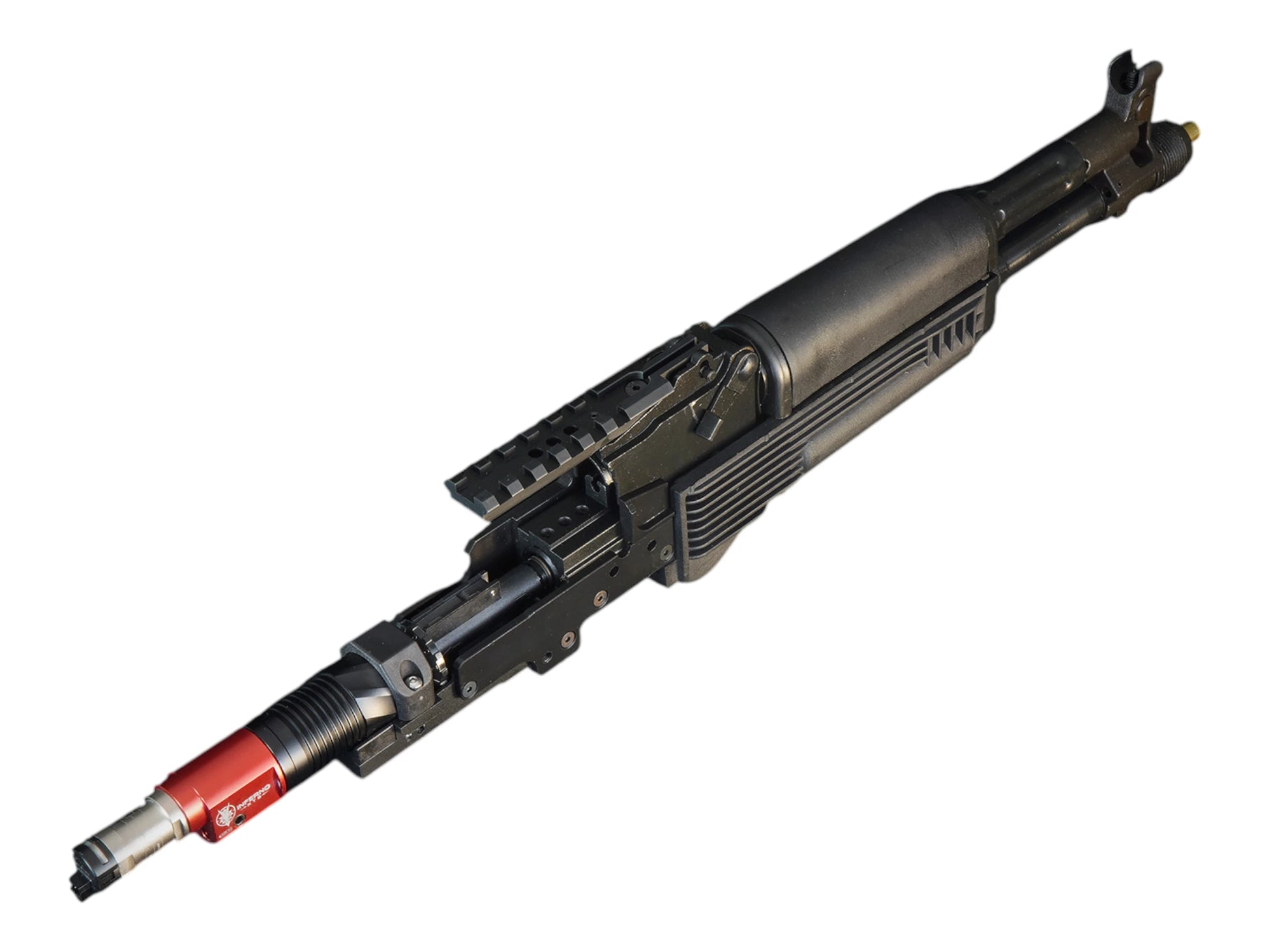

Making an AK work on HPA is harder than making an M4 work, because an AK receiver is a folded steel shell with a riveted trunnion rather than a precisely machined tube. Wolverine's answer was a patent-pending trunnion and engine chassis in CNC aluminium and steel, which carries the alignment the engine needs inside a receiver that is genuinely stamped.

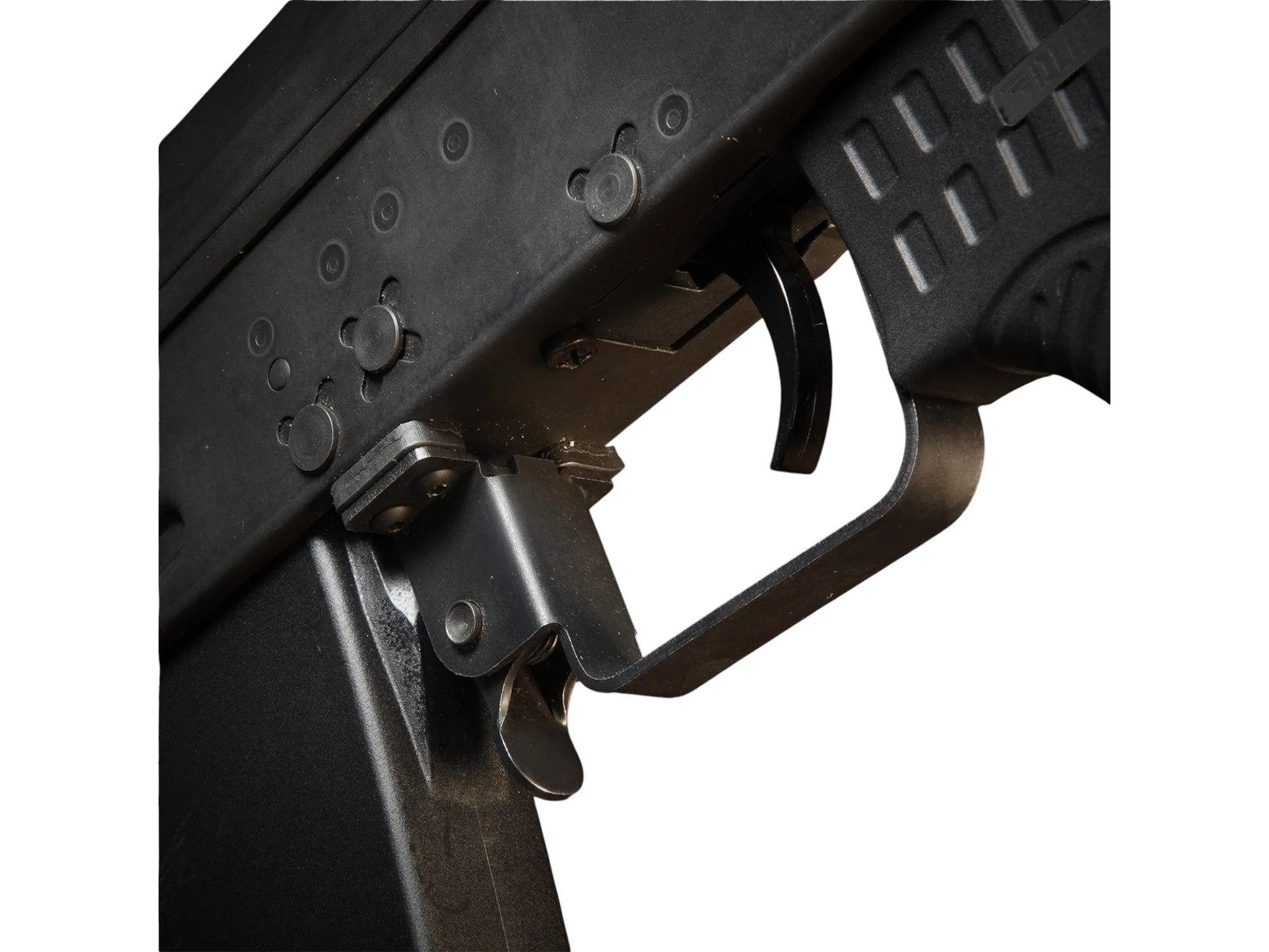

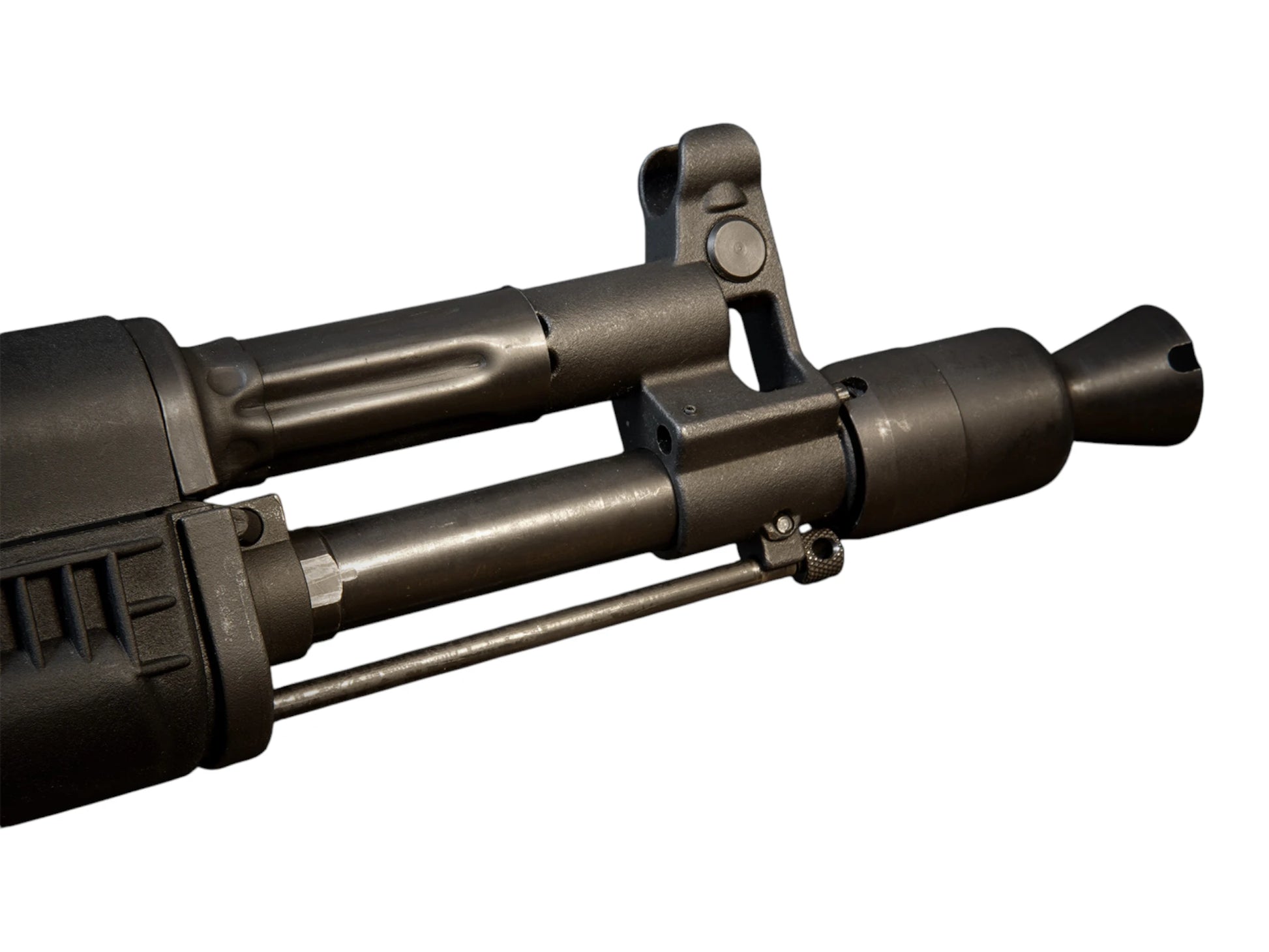

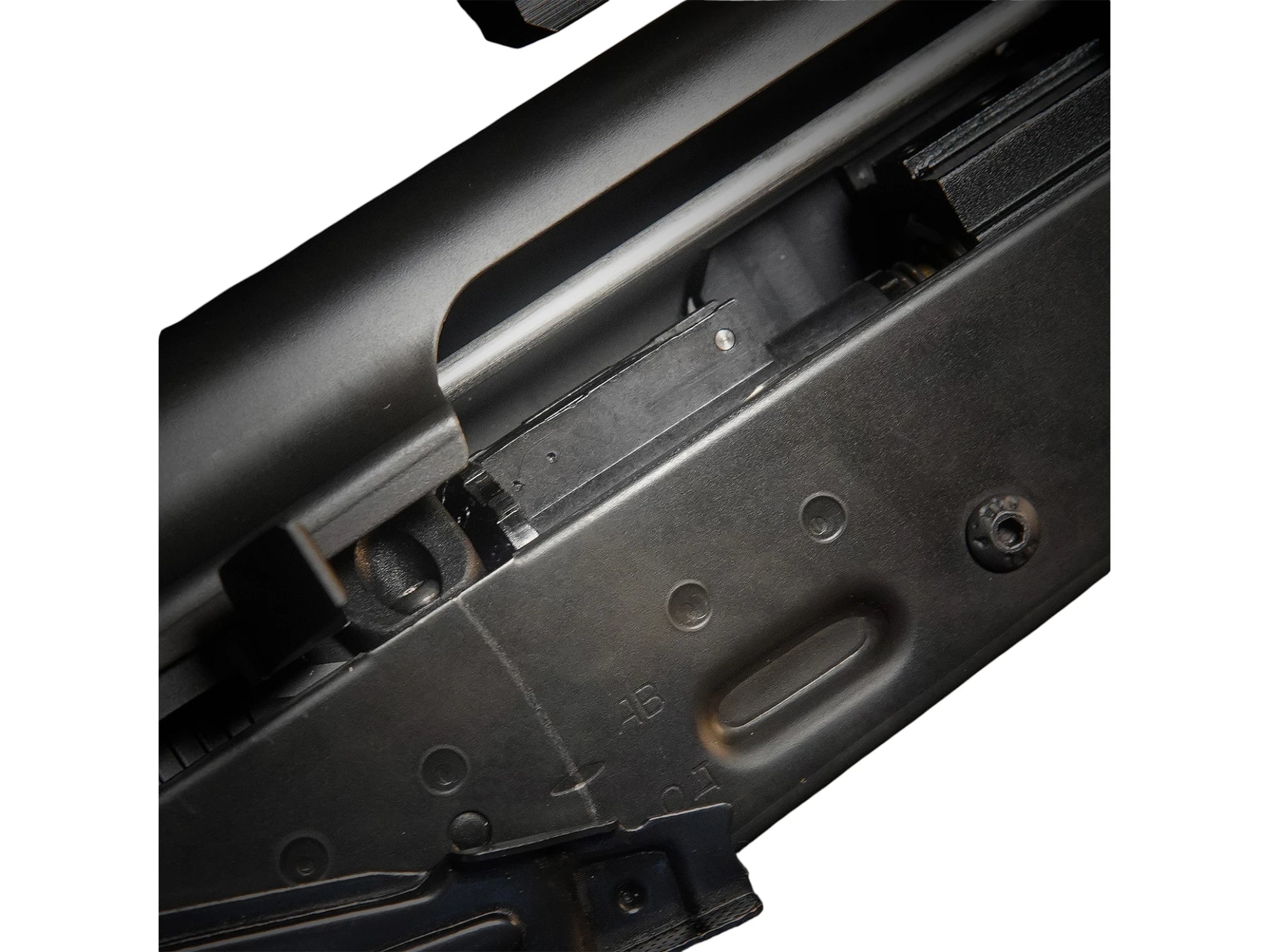

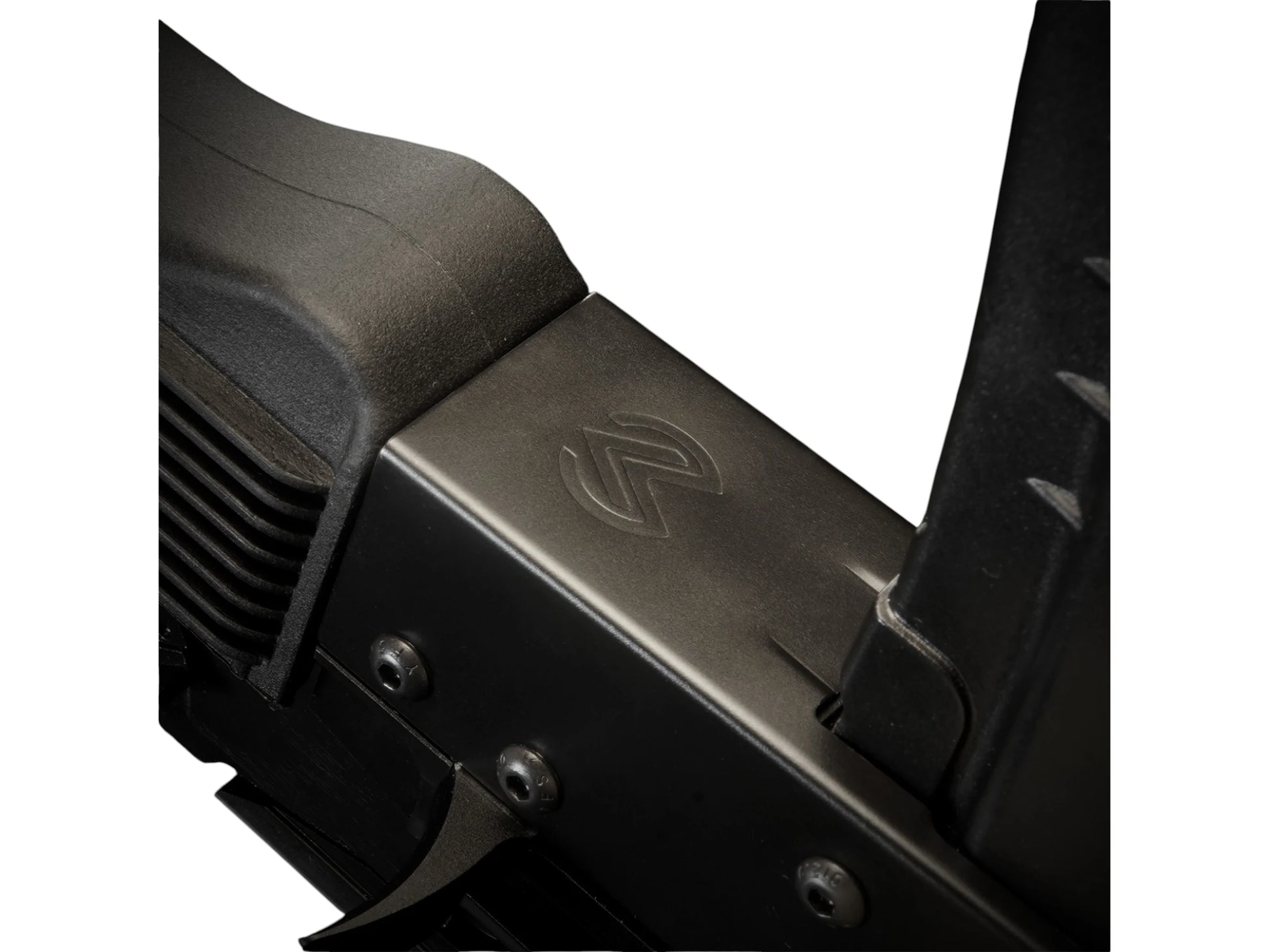

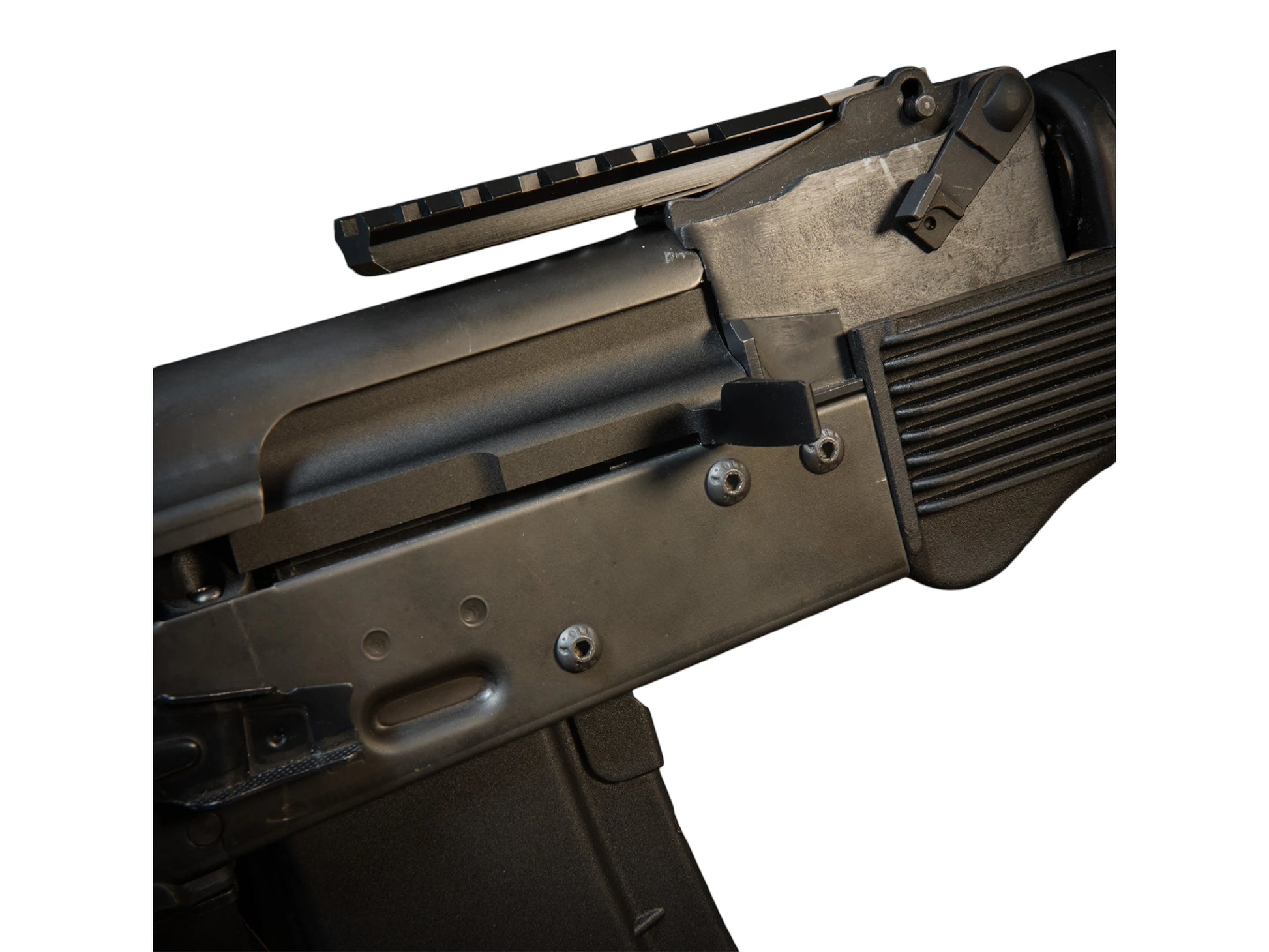

So what you get is an AK that handles like one. The stamped receiver carries the classic WA logo, the front end is AK-105 pattern, the hop, trigger and front sight post are all adjustable, and there is a Picatinny rear sight rail if you want an optic on it. The feed tube is stainless steel.

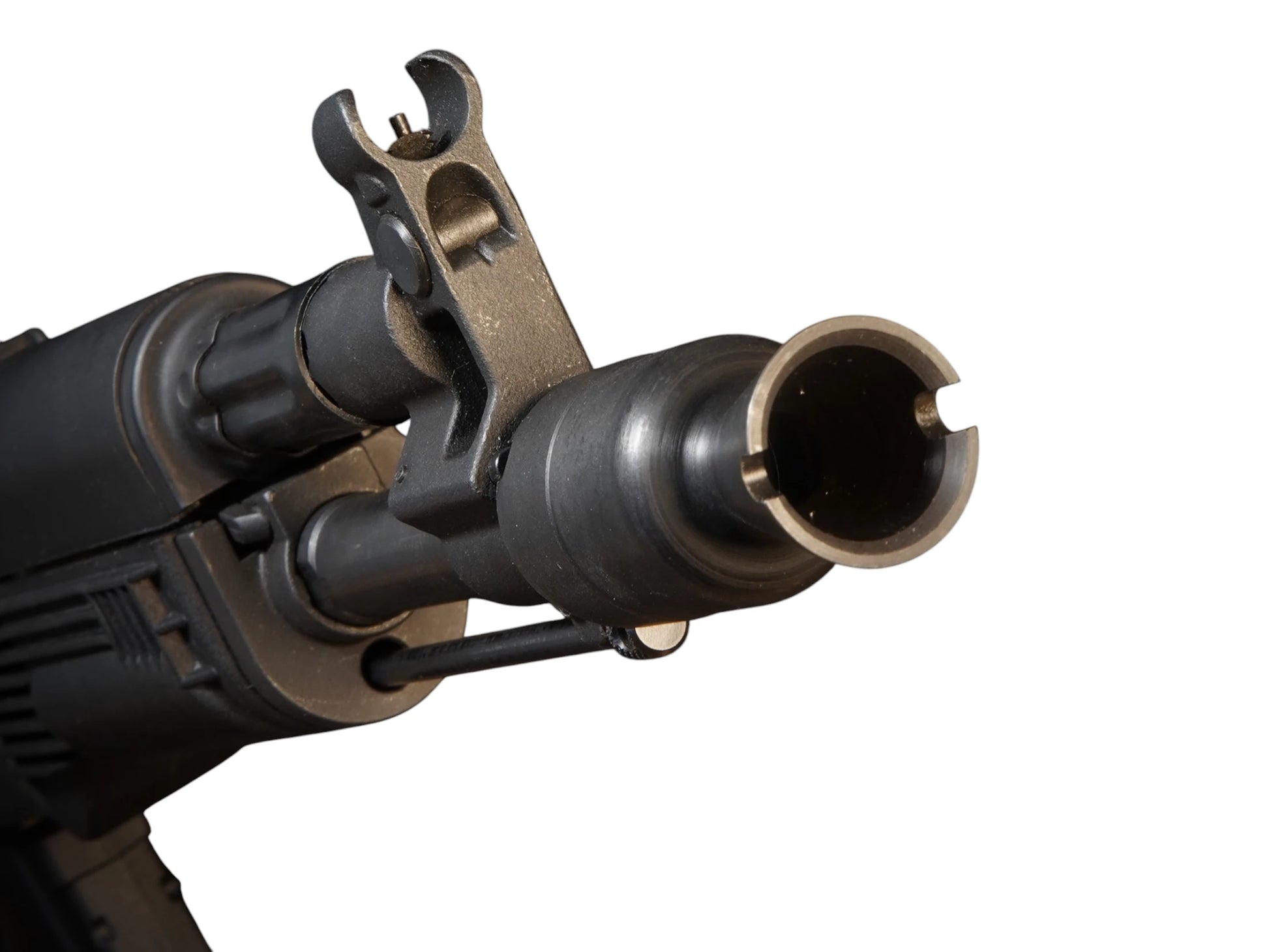

Pay attention to the thread, because it is the one place this gun will catch you out. Wolverine specify 24mm on the muzzle, not the 14mm the M4 range uses. A 14mm tracer or suppressor from your other gun will not fit, and an AK-pattern device is what you need.

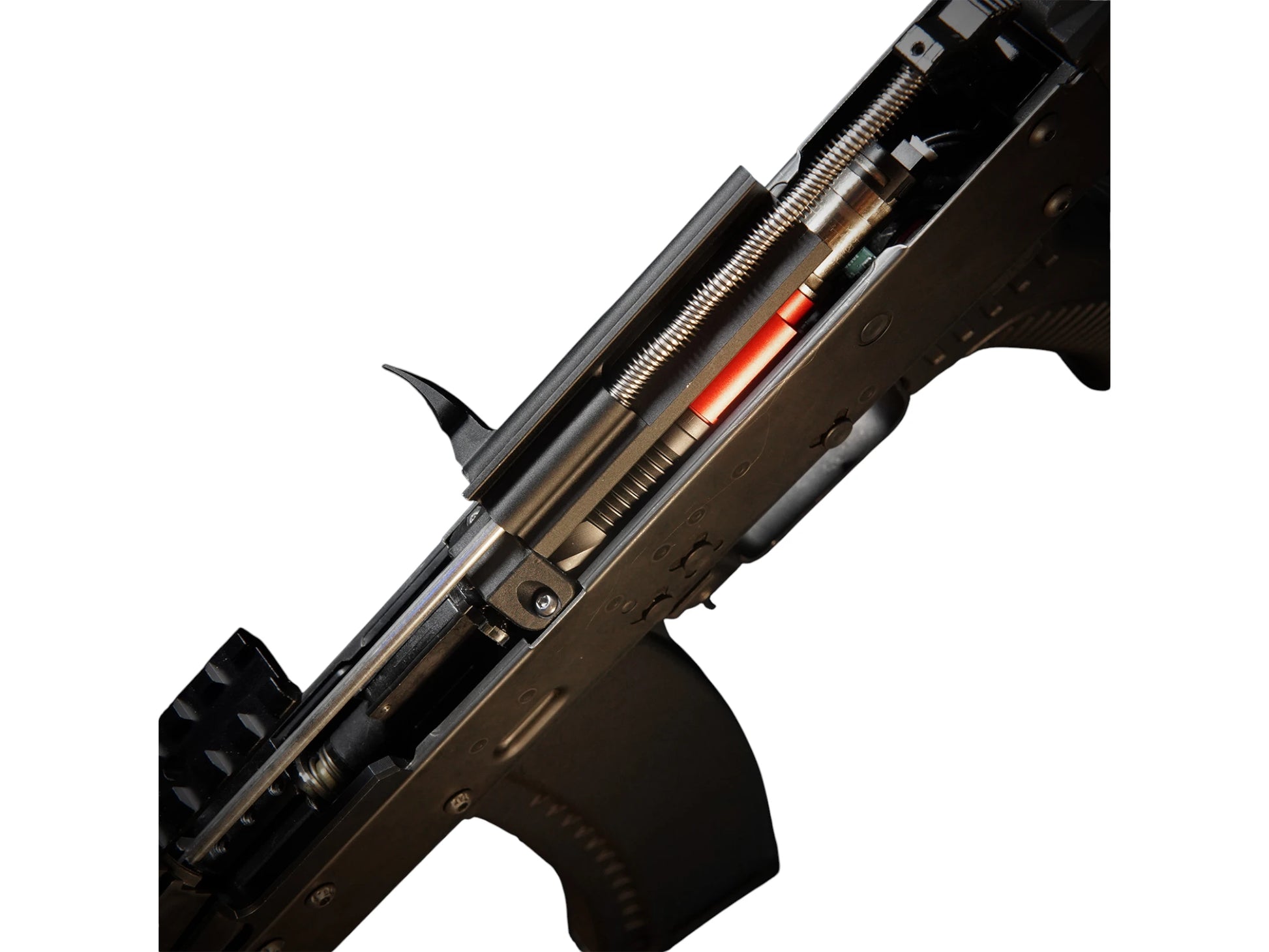

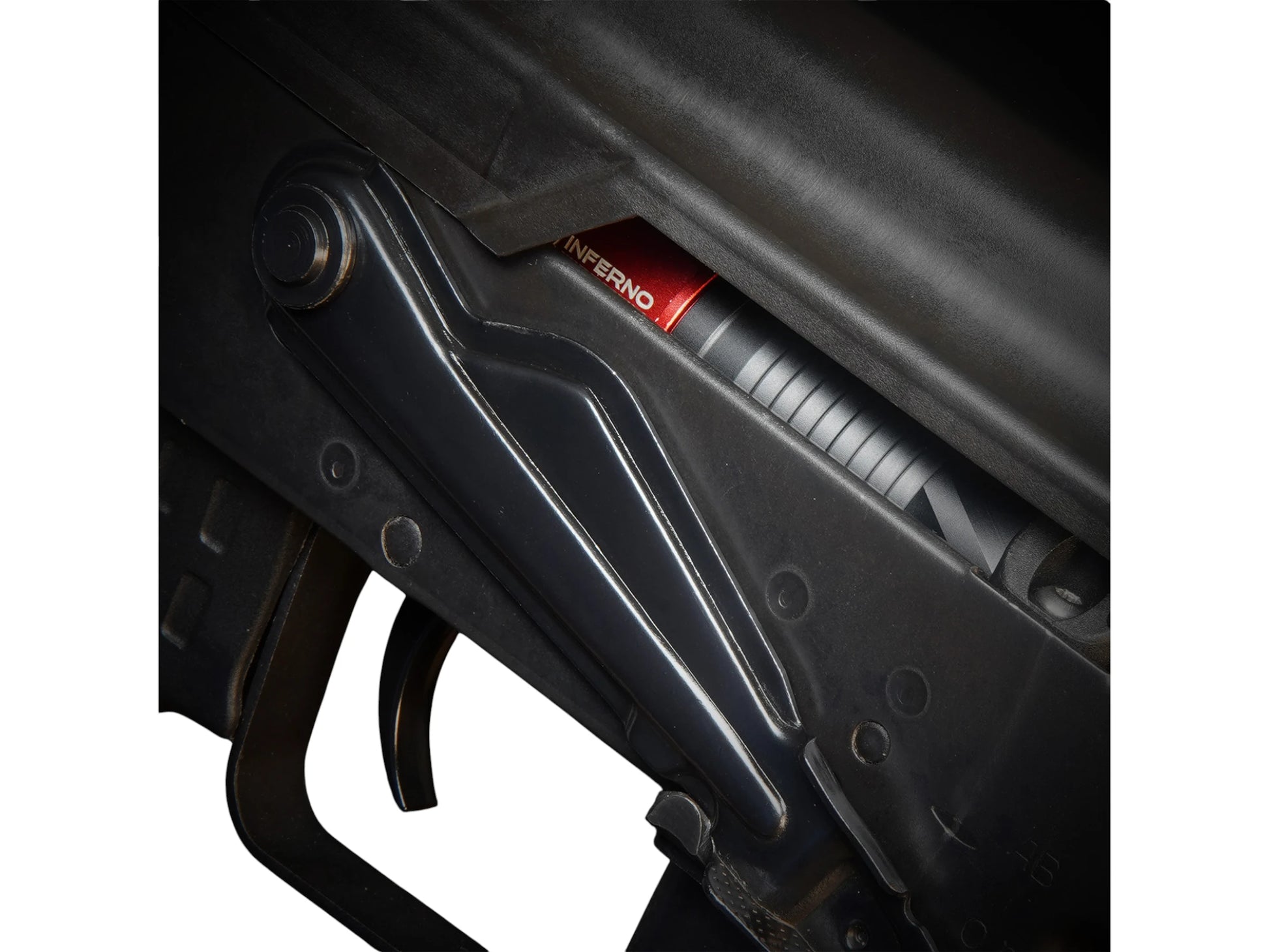

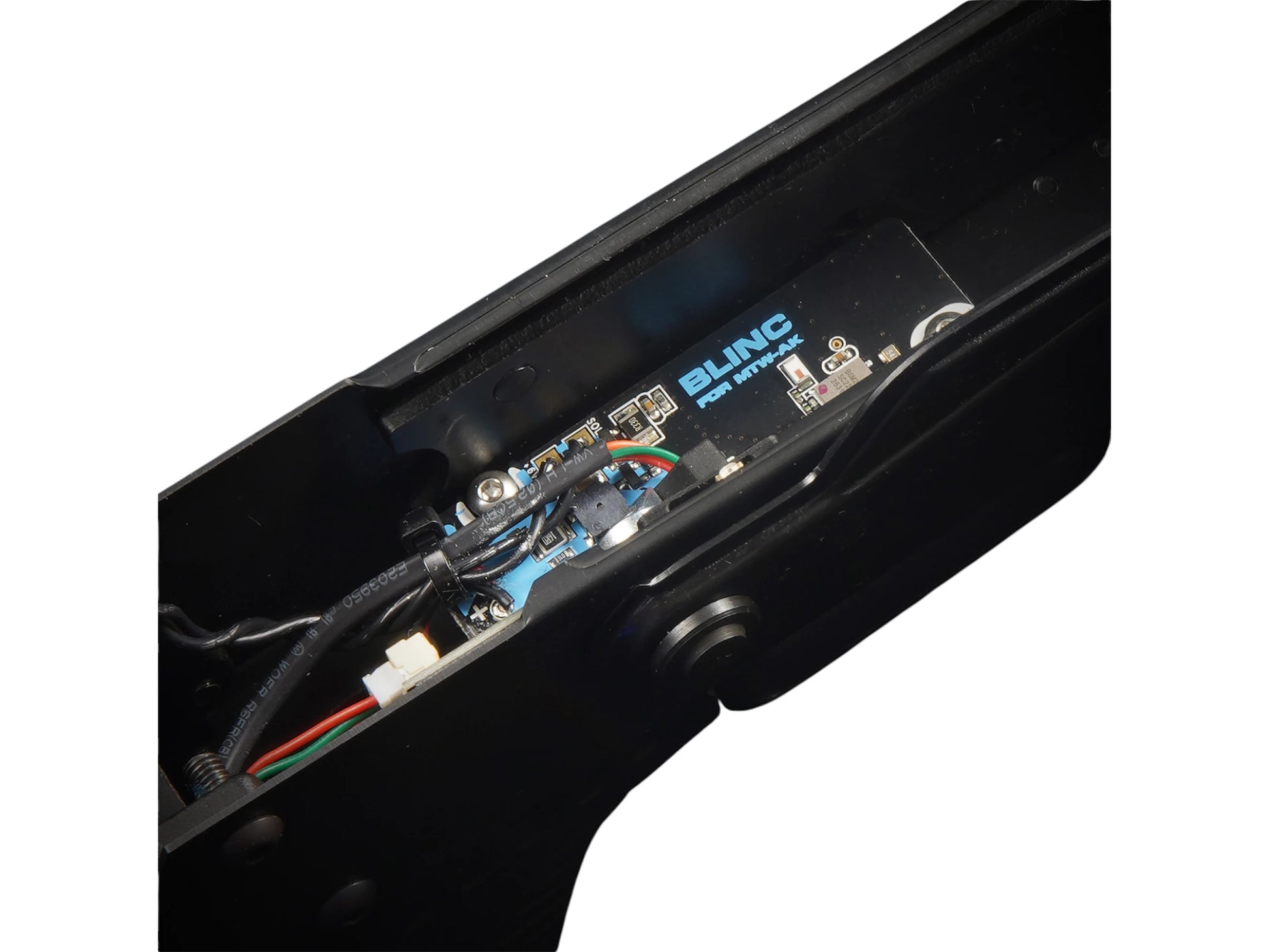

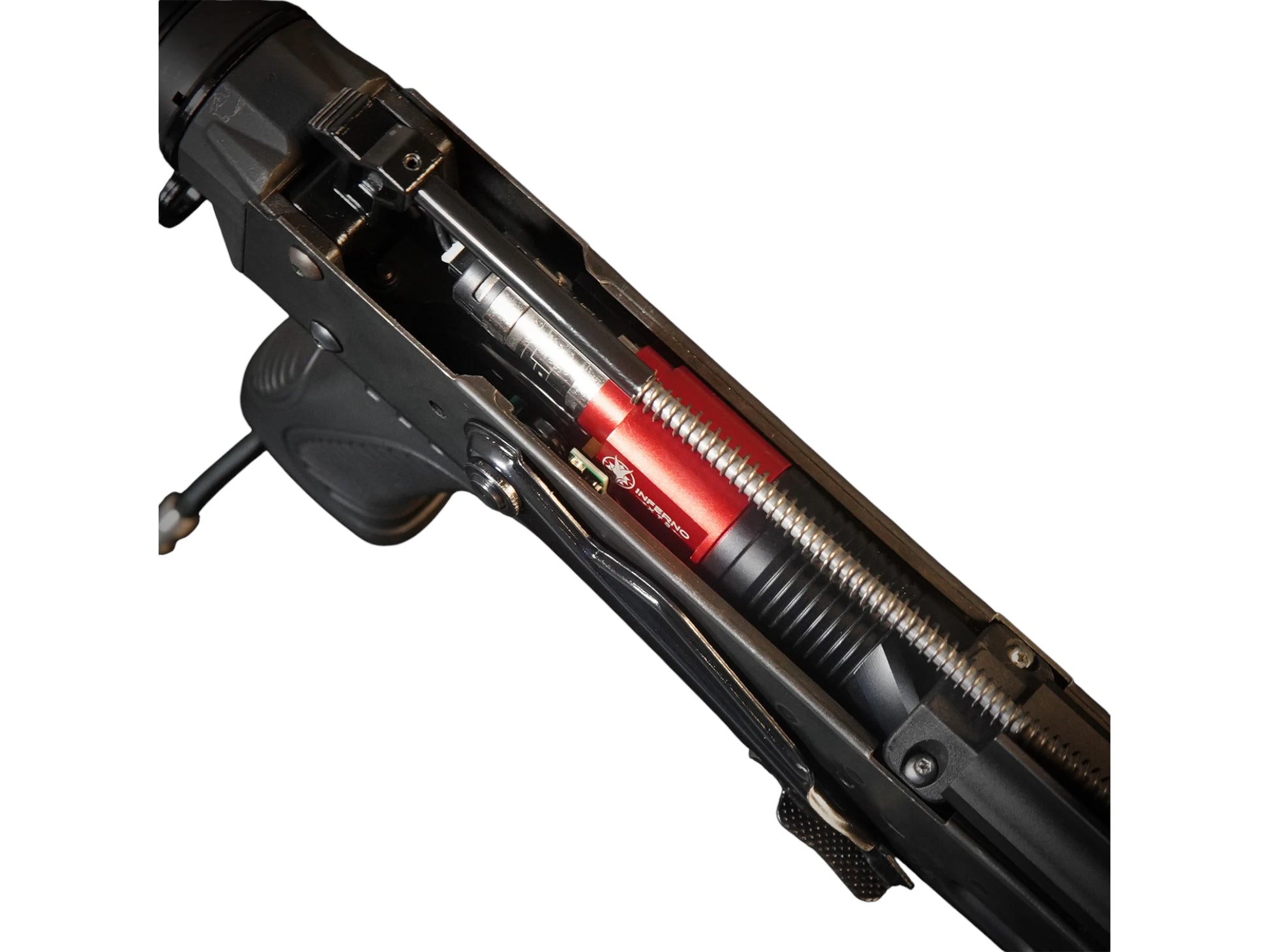

The pressure window is different too. Wolverine give 60 to 160 PSI input for the AK-105, which is wider at both ends than the 80 to 140 the M4 guns use. The engine is the INFERNO XTS, and the BLINC Bluetooth FCU for MTW AK puts rate of fire, dwell, burst and saved profiles on your phone, with programmable magazine capacity and simulated empty-mag detection through the charging handle.

It is also the heaviest gun in the range at 6.1lb, which is honest for a steel-receiver AK and part of why it feels right.

What you need to run it

Item Notes
HPA tank Not included — see HPA tanks
Regulator Required. Set it inside the 60 to 160 PSI window — see HPA regulators
Air line Not included — see HPA lines
Magazine Most AK AEG magazines fit. Wolverine do not state which magazine is supplied
Battery 7.4V mini LiPo on a JST connector, not included. Wolverine specify a 6 to 8V JST input
Muzzle devices An LCT steel AK-105 flash hider is in the box. Anything you add must be 24mm, not 14mm

Specifications

Specification Detail
Platform HPA AK — MTW AK-105
Trim XB
Receiver Authentic stamped steel receiver set, with the classic WA logo
Front end AK-105 pattern
Alignment CNC machined aluminium and steel trunnion and engine chassis, patent pending
Engine INFERNO XTS
Control board BLINC Bluetooth FCU for MTW AK
App control Rate of fire, dwell and burst, saved profiles, programmable magazine capacity, wireless firmware updates, autotune dwell on a paired Acetech chronograph
Empty-mag detection Simulated, through a functional charging handle and detector board. Wolverine label this beta
Inner barrel 380mm
Input pressure 60 to 160 PSI
Muzzle thread 24mm, clockwise per Wolverine's product page
Hop-up Adjustable. Trigger and front sight post are adjustable too
Feed tube Stainless steel
Optics Picatinny rear sight rail

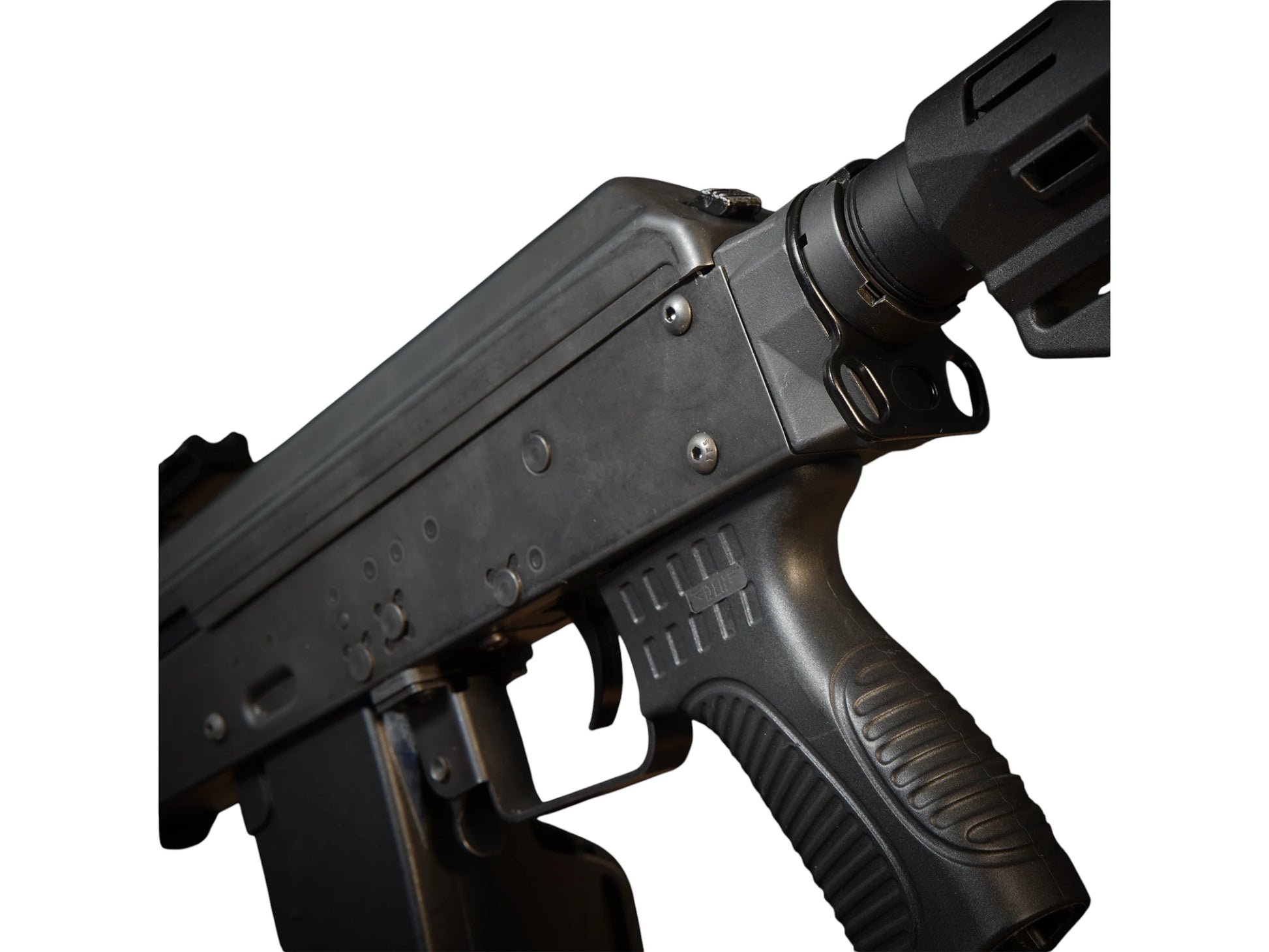

Stock interface Steel buffer tube with an MTW stock adapter
Battery input JST, 6 to 8V
Weight 6.1lb, about 2.77kg
Magazine compatibility Most AK AEG magazines
In the box LCT steel AK-105 flash hider and a replacement O-ring kit
Manufacturer Wolverine Airsoft, Kingsport, Tennessee

What fits it, and what does not

Part Standard Notes
Engines, hop body, inner barrel MTW-Spec Shared with the rest of the MTW range
WRAITH and QUAKE stocks MTW-Spec An adapter line is required
Handguard and selector switch LCT-Spec Not AEG-universal, and not MTW M4 parts
Grips Real-steel AK Modification needed if you run the air line through the grip
Buffer tubes Real-steel milspec Through the steel buffer tube adapter
Sling plates AR pattern Fits as standard
Muzzle devices 24mm A 14mm M4 device will not thread on

Frequently asked questions

Will my 14mm tracer fit? No. This gun is 24mm on the muzzle, which is AK pattern rather than M4. Message us with what you own and we will tell you whether there is an adapter for it.

Why is the pressure window different? Wolverine publish 60 to 160 PSI for the AK-105 against 80 to 140 for the M4 guns. Stay inside the figure for the gun in front of you and chrono it either way.

Are the handguards interchangeable with AEG AKs? Wolverine specify LCT-spec for the handguard and the selector switch, so an arbitrary AK AEG handguard is not guaranteed. Ask before you buy one.

How does the empty-mag detection work without MTW magazines? It is simulated. You set the magazine capacity in the BLINC app and the gun counts, with a functional charging handle to reset it. Wolverine describe the feature as beta.

Is 6.1lb too heavy? It is the heaviest gun Wolverine make on this platform, and that is what a stamped steel AK weighs. If you want light, the MTW-9 is less than half of it.

Can I run a recoil stock on it? A QUAKE is listed as compatible with an adapter line. Ask us first so the right parts go in the same order.

⚠ Always run a secondary regulator. Never put tank pressure straight into the engine. Set your output before you shoot, and chrono at the site every time.
⚠ UKARA: As a realistic imitation firearm, this product requires UKARA registration or a valid defence. We verify at checkout. Register by playing 3 games over 56+ days at Skirmish Wycombe Airsoft.
💡 Titan Forge Airsoft tip: Check the thread before you order anything for the muzzle — this one is 24mm and nothing off your M4 will fit it. See HPA rifles.
