Wolverine Airsoft MTW Forged Tactical XBR

Wolverine Airsoft MTW Forged Tactical XBR

£1,099.95
£1,099.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

DETAILS

SKU: 96511978
View full details
📖 New to HPA? This runs on external high pressure air — it needs a tank, a regulator and a line before it will fire a shot. Read our complete HPA guide before buying.
The fully loaded Forged. Engine, app and recoil, with the airline out of the grip. XBR means three things on top of the Forged receiver: the INFERNO XTS engine, the BLINC Bluetooth FCU, and the QUAKE MTW recoil stock with a fixed rear airline connector to feed it.

The QUAKE is the part you notice. It is an actuated stock driven purely by air, tapping the recoil port on the XTS engine so the same shot that fires the BB also cycles the stock. There are no extra electronics and no motor — Wolverine quote up to 35lb of force from it, for 2.7oz of added weight.

It is tuned rather than switched. The flow reducers inside the XTS nozzle set how hard it hits, so you can trade recoil against efficiency to taste. Wolverine give 15 rounds per second as the optimal rate of fire with a QUAKE fitted and specifically advise against going higher, which is worth taking seriously: this is a mechanical system being cycled by every shot.

The fixed rear airline connector is the quiet half of the upgrade. Instead of running your line out through the grip, it gives you a hardpoint on the sling plate with a 3.5-inch filtered airline inside the gun. It releases on a button, so you can connect and disconnect one-handed, and the gun comes apart without unthreading anything.

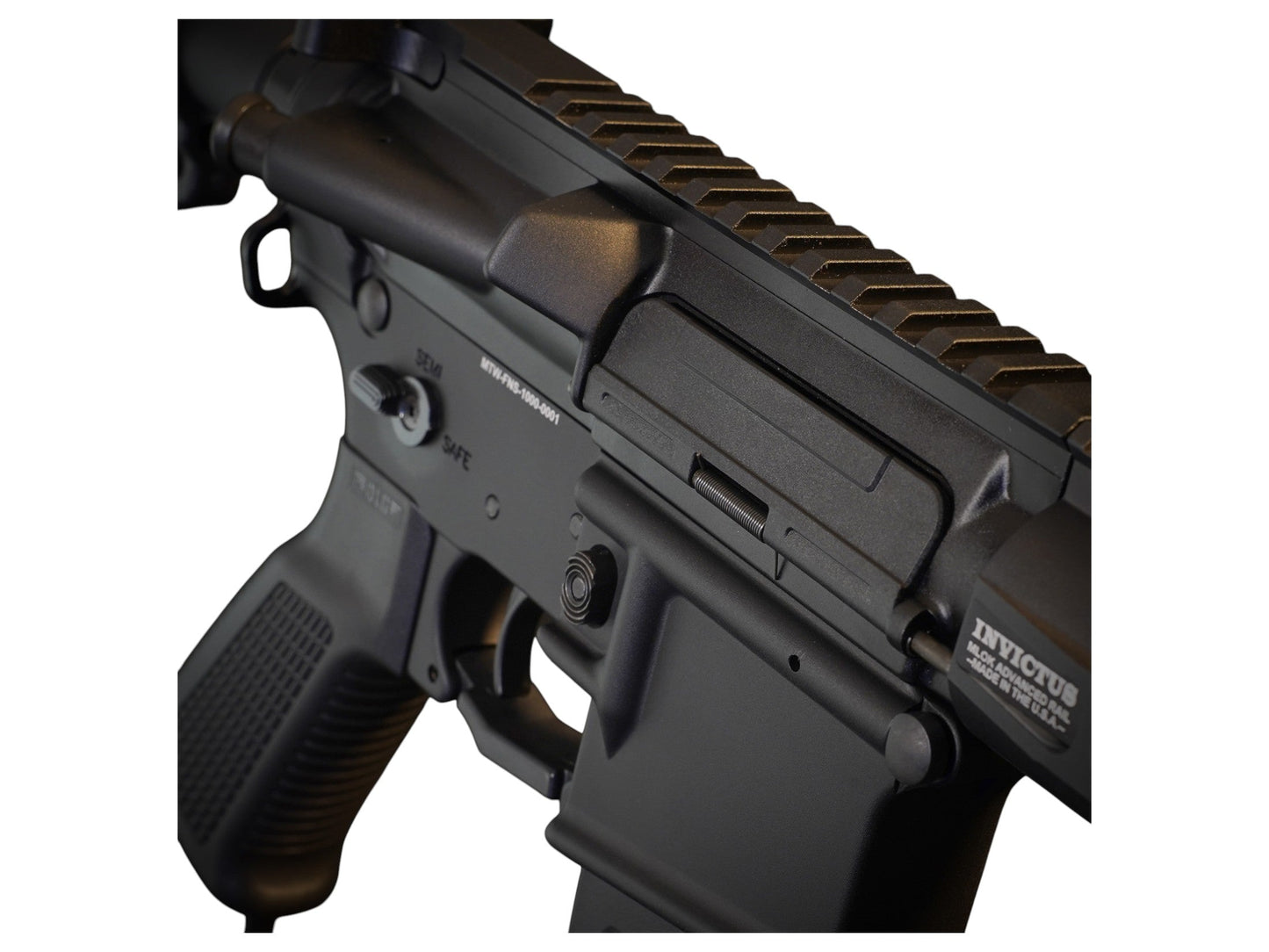

All of that sits on the Forged receiver set: real AR-15 forgings with a forward assist, a spring-loaded charging handle, an ambidextrous steel-paddle selector and a metal hop unit. The BLINC FCU then puts rate of fire, dwell, burst and fire-mode profiles on your phone, with autotune dwell if you pair a compatible Acetech chronograph.

What you need to run it

Item Notes
HPA tank Not included — see HPA tanks
Regulator Required. Set it inside the 80 to 140 PSI window — see HPA regulators
Air line Not included. Connects at the rear hardpoint, not through the grip — see HPA lines
Magazine Most M4/M16 AEG magazines. Empty-mag detection and the bolt catch work with Wolverine's own. Spares in AEG magazines
Battery 7.4V mini LiPo on a JST connector, not included

Specifications

Specification Detail
Platform HPA M4/AR — MTW Forged Series
Trim Tactical XBR
Receiver origin Real AR-15 forgings, machined to MTW spec
Upper receiver Forged 7075 aluminium, with ejection port and forward assist
Lower receiver Forged 7075 aluminium, with a removable trigger guard
Charging handle Spring-loaded
Selector Ambidextrous, with steel paddles
Hop-up Metal
Alignment Intrinsic Alignment — engine, hop and inner barrel on one axis
Engine INFERNO XTS, with the recoil port the QUAKE runs on
Control board BLINC Bluetooth FCU
App control Rate of fire, dwell, burst and fire-mode profiles, with autotune dwell on a paired Acetech chronograph
Recoil QUAKE MTW actuated stock — purely air-driven, no extra electronics
Recoil force Up to 35lb
Recoil weight penalty 2.7oz, about 76g
Rate of fire with QUAKE Wolverine give 15 RPS as optimal and advise against higher
Recoil tuning Through the INFERNO XTS internal flow reducers
Air connection FRAC fixed rear airline connector on the sling plate, with a 3.5-inch filtered airline
Outer barrel 10.3 inches
Inner barrel 285mm
Rail Invictus MK2
Flash hider Invictus MS-2
Grip DLG premium real-steel
Dust cover Reversible polymer
Trigger T5 curved
Operating pressure 80 to 140 PSI
Muzzle thread 14mm negative
Weight Within Wolverine's 4.1 to 4.5lb Forged range, plus 2.7oz for the QUAKE
Battery 7.4V mini LiPo on a JST connector, not included
Manufacturer Wolverine Airsoft, Kingsport, Tennessee

What each letter adds

Letter Part What it gives you
X INFERNO XTS Extended-stroke poppet and nozzle, Delrin baffle, and the recoil port
B BLINC Bluetooth FCU Profiles, burst settings and autotune dwell from a phone
R QUAKE MTW recoil stock Up to 35lb of air-driven recoil, plus the rear airline connector

Frequently asked questions

Does the recoil need its own battery? No. The QUAKE is driven entirely by air off the engine's recoil port, so there are no extra electronics and nothing more to charge.

Why cap the rate of fire at 15 RPS? Because Wolverine say so, and it is a mechanical stock being cycled on every shot. Running it faster is asking the system to do something the manufacturer specifically advises against.

Can I turn the recoil down? Yes, with the flow reducers in the XTS nozzle. They are the intended way to tune it, and they let you trade some of the kick back for efficiency.

What is the point of the rear airline connector? It gets the line out of your grip and onto a hardpoint at the sling plate, with a button release. You can hook up one-handed and strip the gun without fighting the line.

Will the QUAKE fit a Gen 2 engine? No. It needs the recoil port on the INFERNO XTS, which the Gen 2 does not have.

Does recoil make it shoot better? No, and it is worth being clear about that. It makes the gun feel like a real rifle, which is the reason to buy it. Accuracy and consistency come from the hop, the barrel and the regulator.

⚠ Always run a secondary regulator. Never put tank pressure straight into the engine. Set your output before you shoot, and chrono at the site every time.
⚠ UKARA: As a realistic imitation firearm, this product requires UKARA registration or a valid defence. We verify at checkout. Register by playing 3 games over 56+ days at Skirmish Wycombe Airsoft.
💡 Titan Forge Airsoft tip: Set the recoil with the flow reducers before you chase rate of fire — 15 RPS with a QUAKE that hits properly beats 25 RPS that does not. See HPA rifles.
