Wolverine MTW Forged Series: SI 10"

Wolverine MTW Forged Series: SI 10"

£869.95
£899.95 £869.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

DETAILS

SKU: 66144907
View full details
📖 New to HPA? This runs on external high pressure air — it needs a tank, a regulator and a line before it will fire a shot. Read our complete HPA guide before buying.
The current engine on a forged receiver, with no app in the way. An INFERNO XTS running on the Spartan control board. You get the extended-stroke engine and set it from the gun rather than from a phone.

The INFERNO XTS is the engine Wolverine build now. Its poppet and nozzle are independent and extended-stroke, so the seal against the hop is better, the baffle is Delrin machined as a single piece, and three optional flow reducers let you trim airflow when you are down at low energy or feeding high input pressure.

Pairing it with the Spartan board instead of a BLINC is a quieter way to own the same engine. The Spartan is a single all-in-one trigger board and FCU with an optical select-fire sensor, and it holds eight rate-of-fire presets and twelve dwell presets that you step through on the gun. Nothing to pair, nothing to update, nothing to lose signal with.

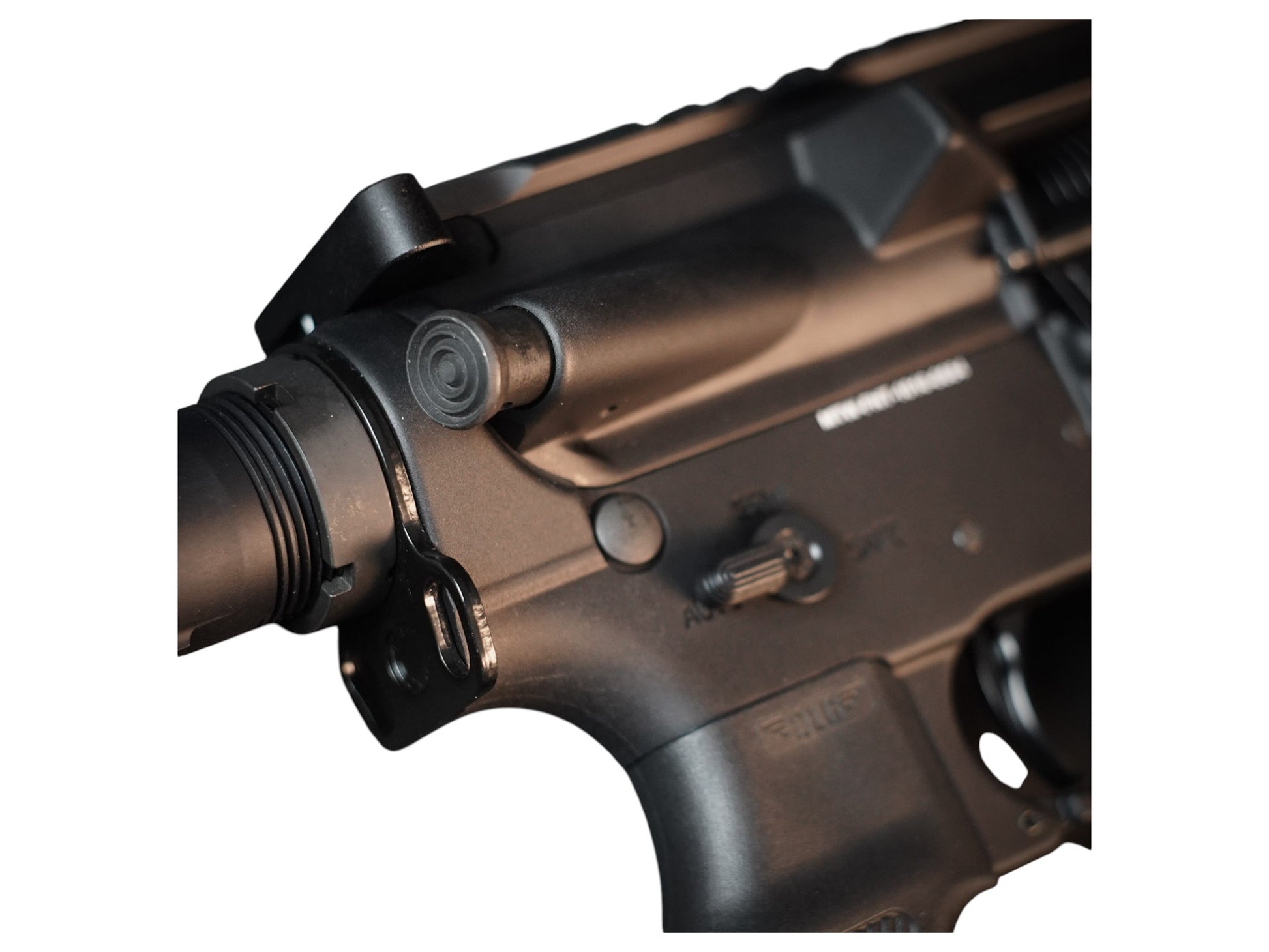

The receiver is the Forged set — real AR-15 forgings machined to MTW spec, which is where the forward assist, the spring-loaded charging handle, the ambidextrous steel-paddle selector and the removable trigger guard come from. The hop unit is metal, and empty-mag detection works with the bolt catch on Wolverine magazines.

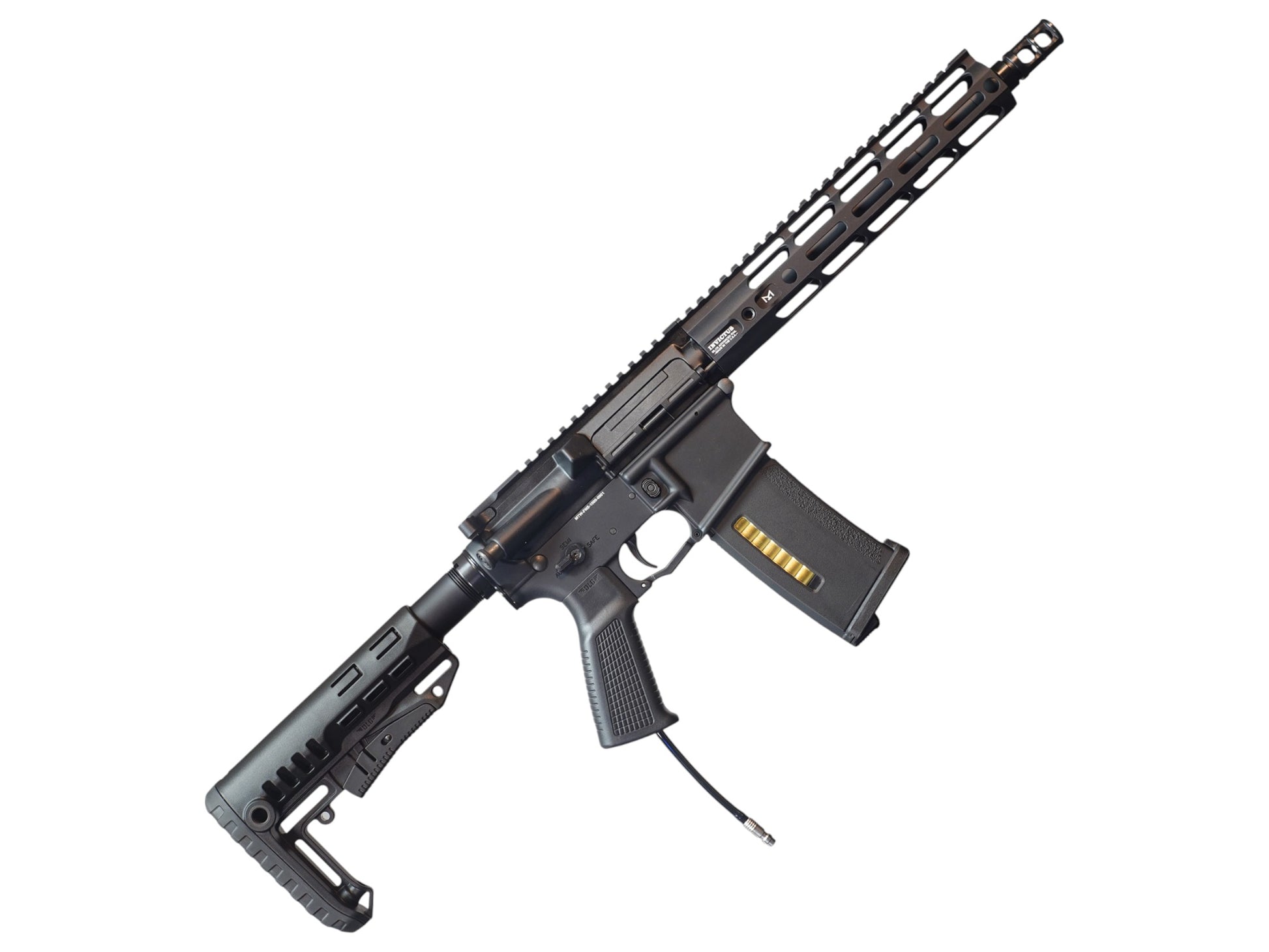

At ten inches with a 285mm inner barrel it sits in the most useful part of the range: short enough for buildings, long enough for woodland, and the length Wolverine publish their XTS efficiency figures against.

What you need to run it

Item Notes
HPA tank Not included — see HPA tanks
Regulator Required. Set it inside the 80 to 140 PSI window — see HPA regulators
Air line Not included. Runs through the integrated filtered grip line — see HPA lines
Magazine Most M4/M16 AEG magazines. Empty-mag detection and the bolt catch work with Wolverine's own. Spares in AEG magazines
Battery 7.4V mini LiPo on a JST connector, not included

Specifications

Specification Detail
Platform HPA M4/AR — MTW Forged Series
Trim SI
Receiver origin Real AR-15 forgings, machined to MTW spec

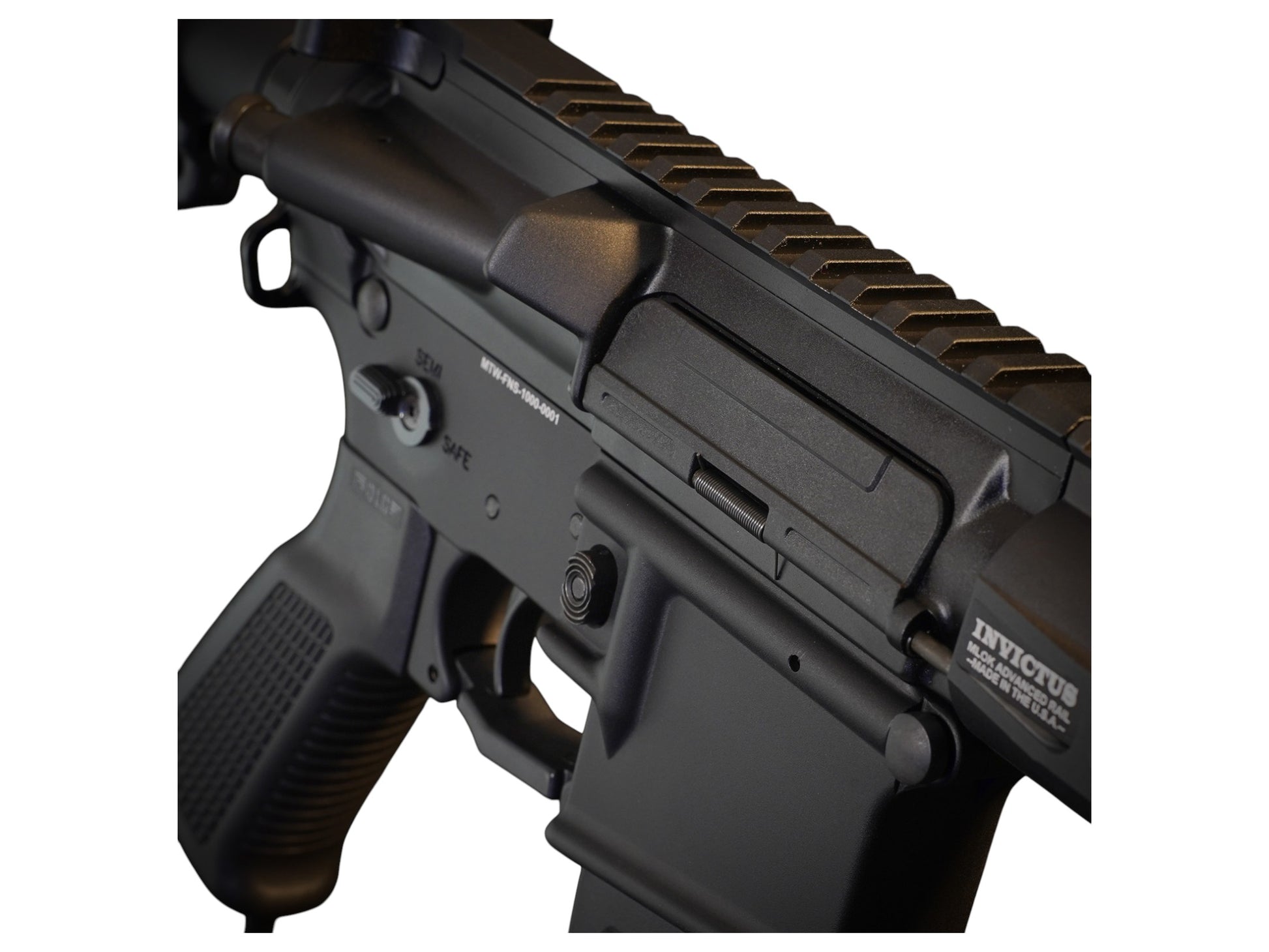

Upper receiver Forged 7075 aluminium, with ejection port and forward assist

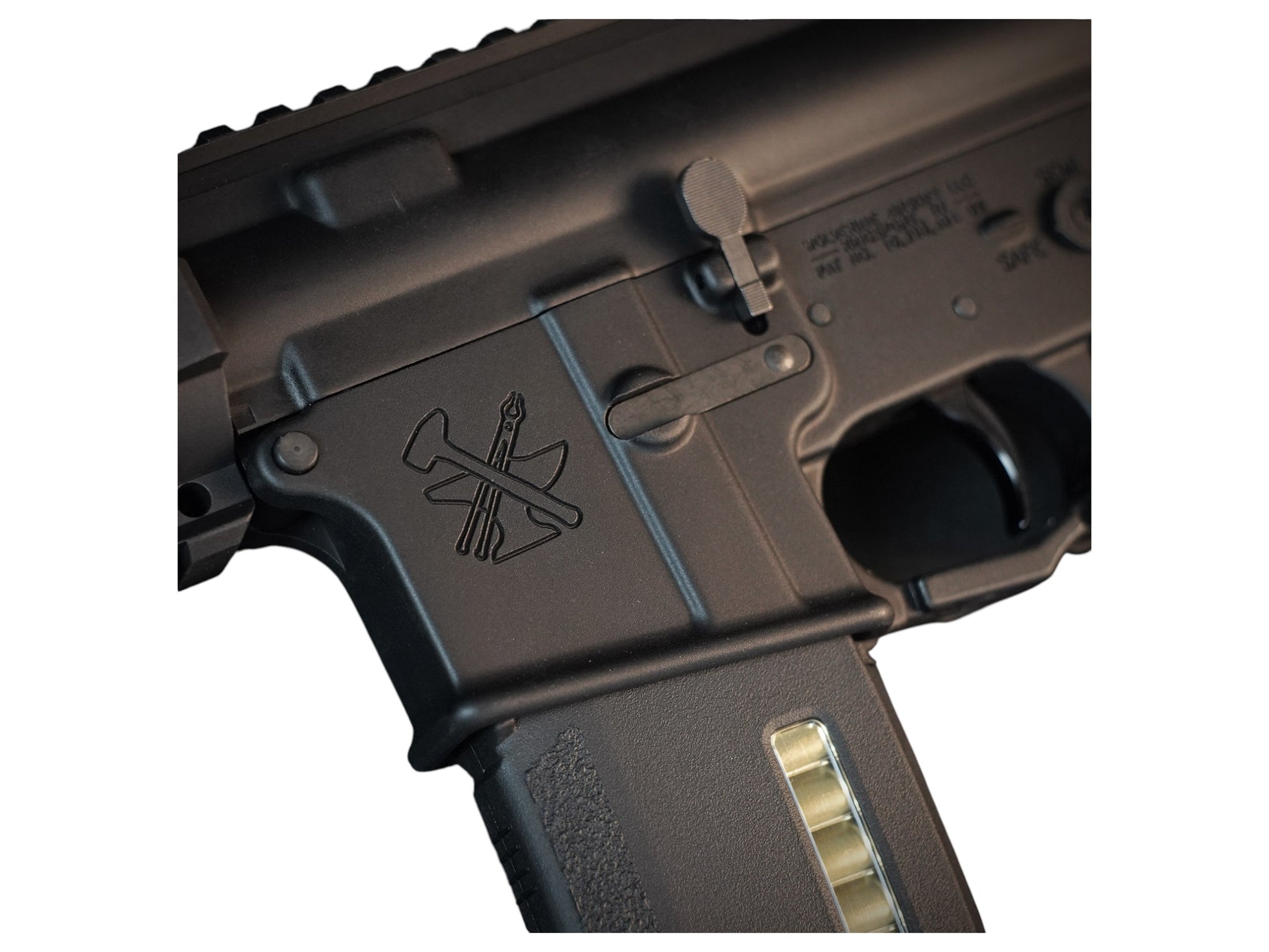

Lower receiver Forged 7075 aluminium, with a removable trigger guard
Charging handle Spring-loaded
Selector Ambidextrous, with steel paddles

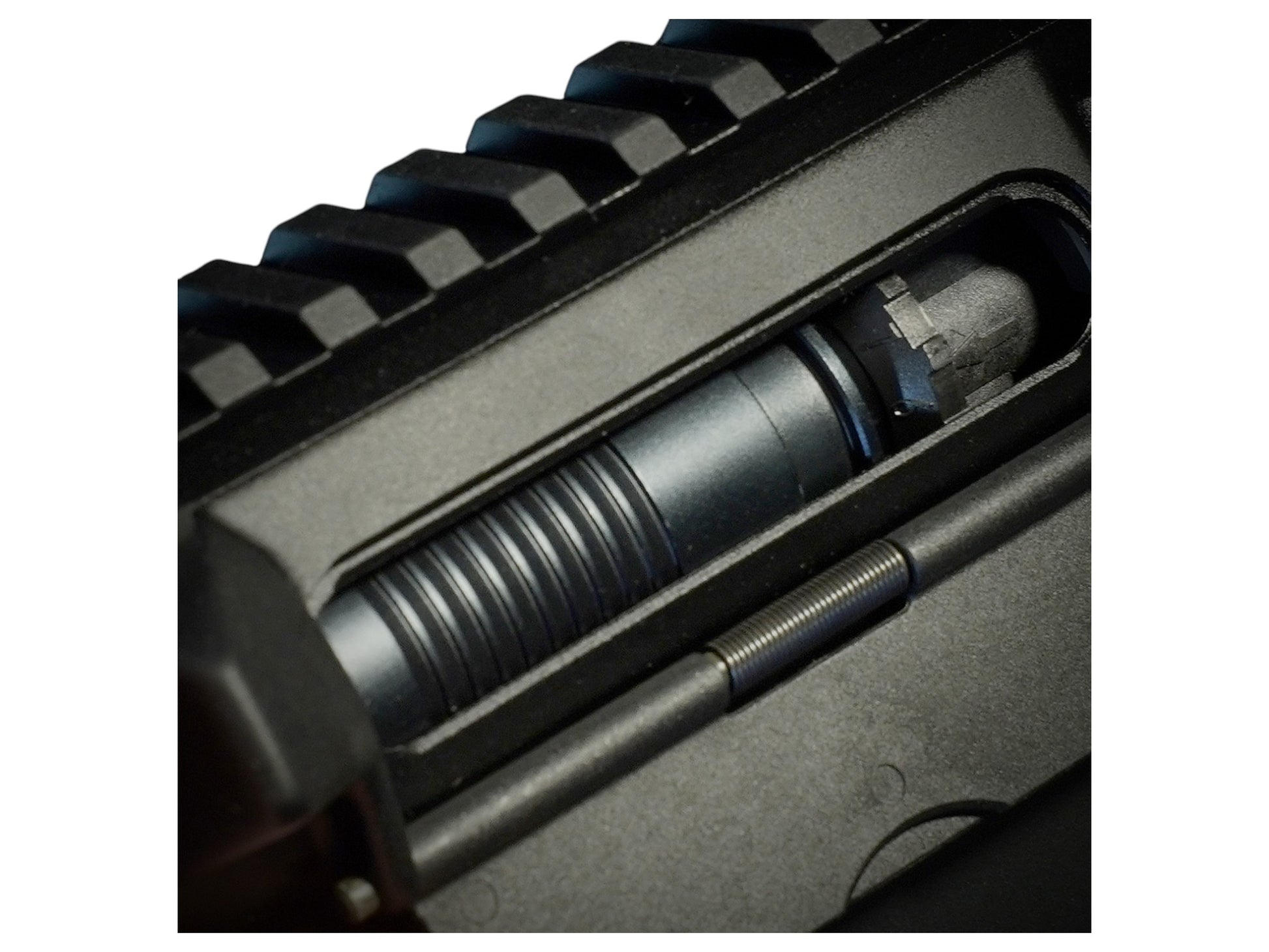

Hop-up Metal
Alignment Intrinsic Alignment — engine, hop and inner barrel on one axis
Engine INFERNO XTS — extended-stroke poppet and nozzle, one-piece Delrin baffle
Control board Spartan Electronics MTW — all-in-one, with an optical select-fire sensor
Presets Eight rate-of-fire presets and twelve dwell presets, set on the gun
Flow reducers Three levels available for the XTS nozzle assembly
Outer barrel 10.3 inches
Inner barrel 285mm
Trigger T5 curved
Operating pressure 80 to 140 PSI

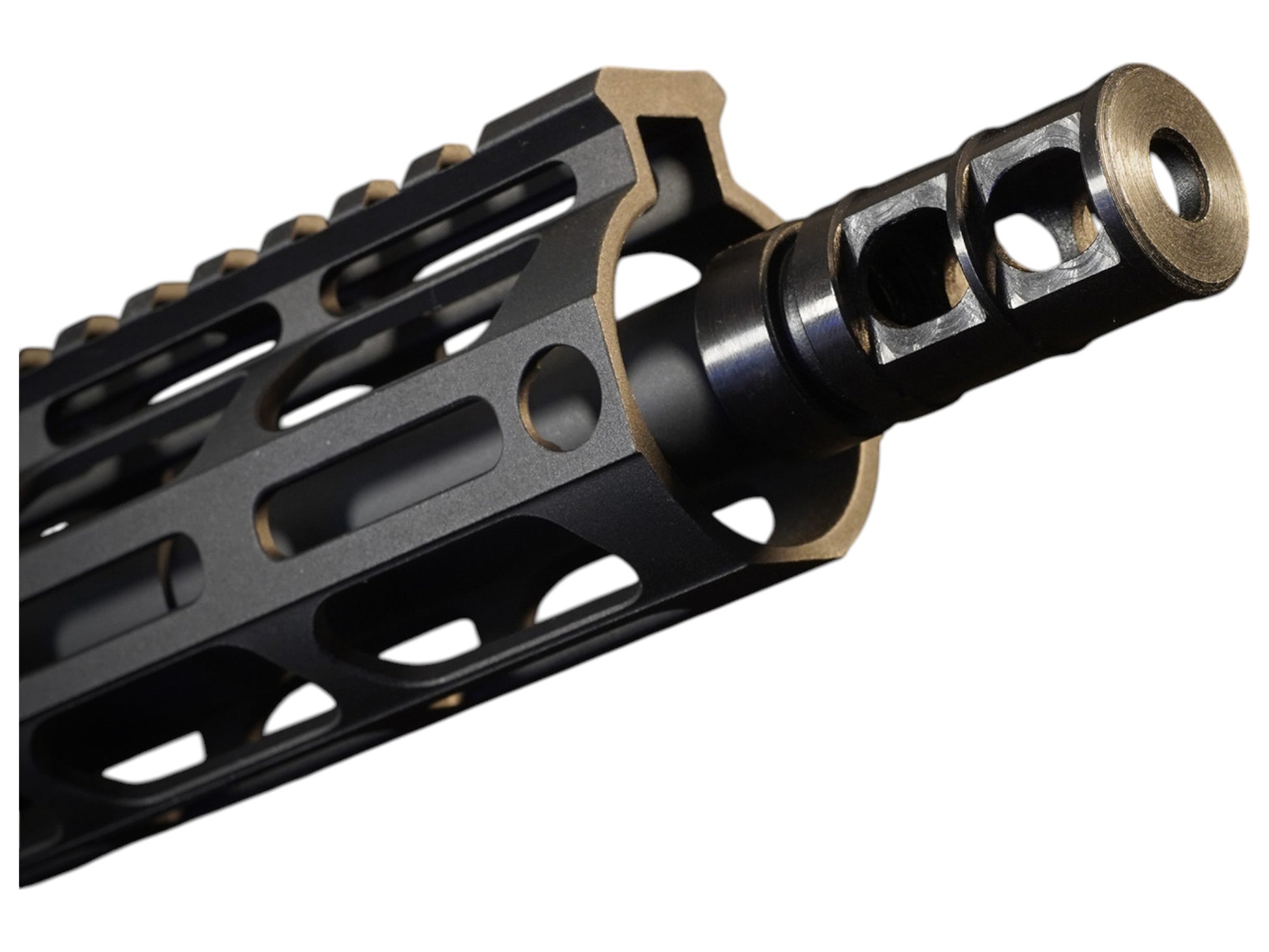

Muzzle thread 14mm negative
Weight Within Wolverine's 4.1 to 4.5lb Forged range

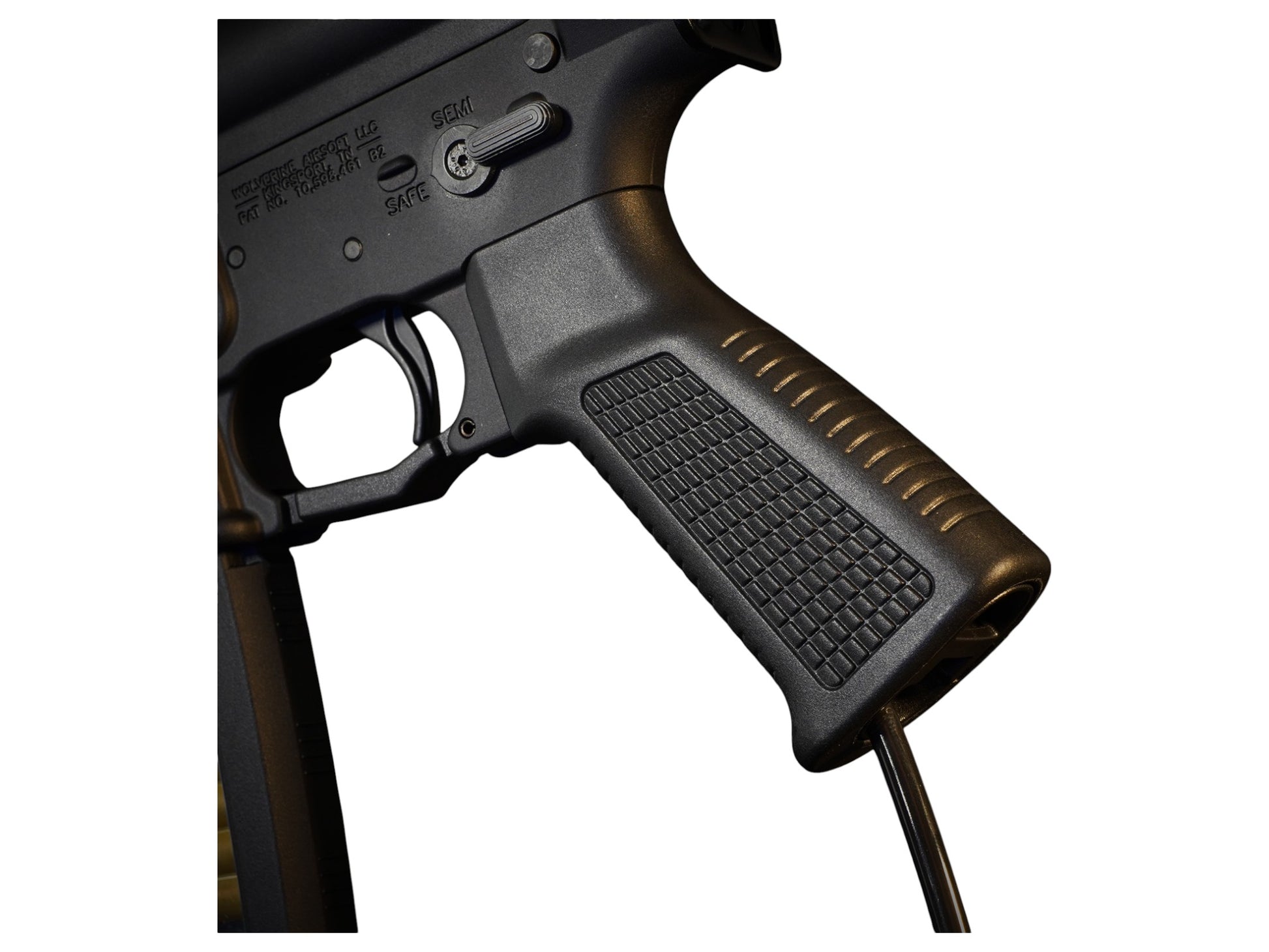

Air fitting Integrated filtered grip line, US Foster quick-disconnect
Battery 7.4V mini LiPo on a JST connector, not included
Manufacturer Wolverine Airsoft, Kingsport, Tennessee

What the XTS changes over the Gen 2

Feature What it is for
Extended-stroke poppet and nozzle The nozzle reaches further into the hop, so the seal on the BB is better
One-piece Delrin baffle Fewer parts in the air path, and a quieter report
Flow reducers, three levels Lets you run a higher input pressure while keeping output energy down
Recoil port The connection a QUAKE recoil stock needs. A Gen 2 does not have one

Frequently asked questions

Why choose the Spartan over a BLINC? If you set your gun up once and leave it, the Spartan does everything you need and there is no app, no pairing and no firmware. If you change profiles between sites, the BLINC is the better tool.

Can I add a QUAKE recoil stock? The XTS has the recoil port the QUAKE needs, so yes in principle. Ask us before ordering so we can check the stock and airline parts against your build.

What are the flow reducers for? They restrict airflow inside the XTS nozzle so you can feed the engine a higher input pressure without the output energy going up with it. Useful at low joule limits.

How do I set the rate of fire without an app? Through the board's presets on the gun. The Spartan holds eight rate-of-fire settings and twelve dwell settings, stepped through with the selector and trigger.

Is this the same engine as the XB models? Yes, the same INFERNO XTS. The difference between this and an XB is the control board, not the engine.

⚠ Always run a secondary regulator. Never put tank pressure straight into the engine. Set your output before you shoot, and chrono at the site every time.
⚠ UKARA: As a realistic imitation firearm, this product requires UKARA registration or a valid defence. We verify at checkout. Register by playing 3 games over 56+ days at Skirmish Wycombe Airsoft.
💡 Titan Forge Airsoft tip: An XTS on a Spartan board is the value build in the range — current engine, no app, and the saving goes into air. See HPA rifles.
